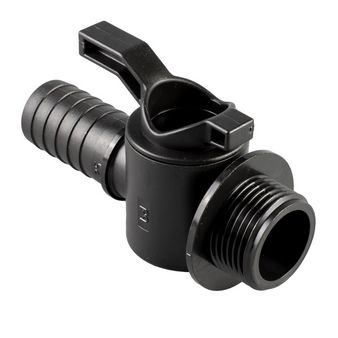

Lever valve 0400581 seriesfor controlthreadedhose
Add to favorites
Compare this product
Characteristics
- Operation
- lever
- Function
- for control
- Body
- threaded
- Applications
- hose
- Material
- polypropylene
- Other characteristics
- ISO, standard
- DN
1 in
- Pressure
1 bar
(14.5 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)
Description
CYLINDER VALVES with connections: male thread pass through G1 and straight hose barb
Connectivity standard
External thread GAS cylindrical ISO 228/1
Connectivity standard
Bucchi srl for pipe fittings adopts as standard connection ISO 228/1; in order to improve hydraulic seal has decided to create its own internal regulations, based on a soft conical thread. Therefore it is noted that to ensure the hydraulic seal declared it is expected a slight tightening with a key that does not generate the breakage of the coupling. (See table tightening torque)
Full bore
The hole of the sphere corresponds to the internal diameter of the tube
Colors
Black (RAL 9011)
