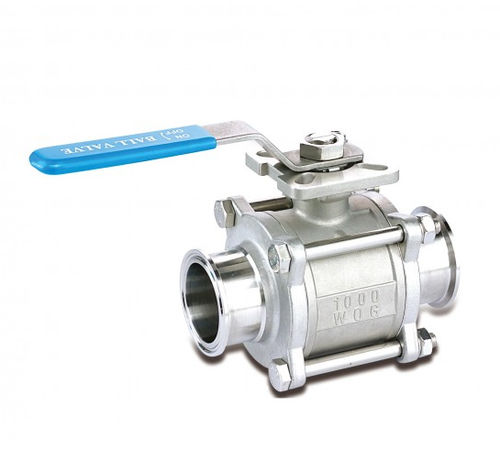

ball valve / lever / regulating / for water
BK-316TC

{{requestButtons}}

Characteristics

  • Type:

    ball

  • Operation:

    lever

  • Function:

    regulating

  • Media:

    for water, for liquid food products and beverages, for air

  • Body:

    with Cetop flange connections, in-line, stainless steel

  • Applications:

    for the chemical industry, for the food industry, sanitary

  • Temperature:

    Min.: -20 °F (-29 °C)

    Max.: 450 °F (232 °C)

  • Pressure:

    600 psi, 800 psi, 1,000 psi

  • DN:

    Min.: 0.5 in

    Max.: 4 in

Description


Size Range 1/2"~4"
Working Pressure 1/2"-2" 1000PSI, 2-1/2"-3" 800PSI, 4" 600PSI W.O.G
Temperature Range: -20 to 450°F
END Type T-Clamp
Options Padlocking Device Actuator Mountin Bracket
Direct-Mounting of Actuators to Valves
For Food and General Chemical Service Applications
Adjustable Stem Packing
Blow-Out Proof Stem Design
In-Line Repairable
Available In Stainless Steel Body Construction
100% Tested by Air under water at 100PSI, open and closed positions
