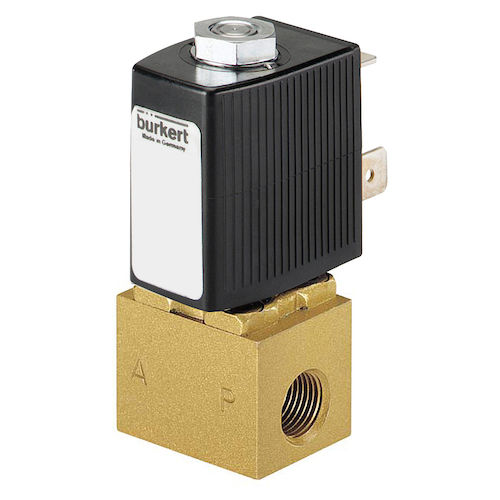

Direct-operated solenoid valve 60112-wayNCoil
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- water, for gas, oil
- Body
- compact, threaded, IP65
- Other characteristics
- standard, DIN, plunger
- DN
1.2 mm, 1.6 mm, 2 mm, 2.4 mm
(0.047 in, 0.063 in, 0.079 in, 0.094 in)- Voltage
24 V, 110 V, 230 V
- Temperature
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)- Pressure
Max.: 21 bar
(304.6 psi)Min.: 0 bar
(0 psi)
Description
Valve 6011 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. Push-in fittings can be selected for flexible hose connection. In combination with a cable plug in accordance with industry standard Form B or DIN EN 175301-803 Form C, the valves satisfy protection class IP65.
Direct-acting and compact small-format valve with diameter of up to DN 2.4
Screwed coil system
Simple and quick flange or manifold installation
Quick coupling (push-in fitting) for plug-in hose connections
