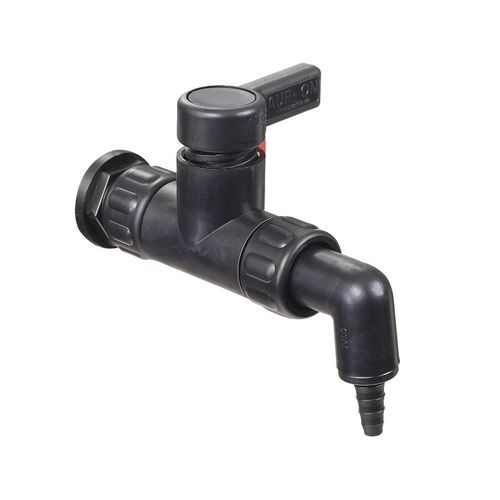

Drain faucet 0525-1100

male3/4for explosive atmospheres

Product details

• StopCock PA, electroconductive
• With discharge angle and rotatable spout preventing drips
• With tapered spout for bottles with narrow openings (diameter from 6 to 8 mm)
• Media-contacting parts: conductive PA (polyamide) and PTFE
• Supplied with PA adapter conductive to electricity for 3/4" inner thread
• Tight-closing for complete seal
• Especially effortless operation
• With connecting cap nut, guaranteed vertical position of the cock
• Pressure-resistant up to 2 bar at 20 °C (without discharge bracket and grommet)

Detailed information

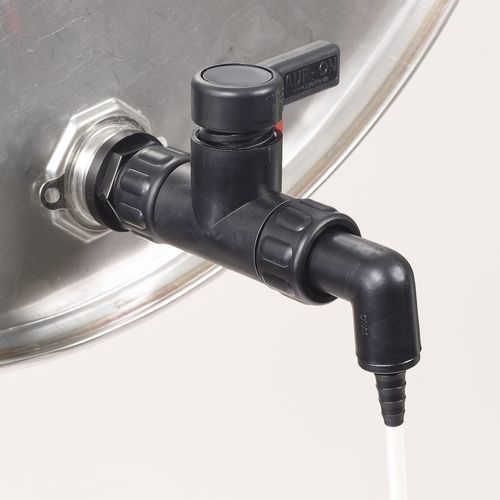

The StopCock PA fits onto G 3/4" connection threads and, with the supplied adapter, onto 3/4" inner threads. It therefore connects to nearly all commercially available canisters and barrels where the discharge thread is at the bottom. Commercially available spigots made of polyethylene or polypropylene are not suitable for solvents.

Area of application
The spigot StopCock PA is made of electrically conductive polyamide and is therefore particularly suitable for use with solvents and for applications requiring electroconductive components. It is designed for draining and controlled dispensing from containers with G 3/4" connections.

Directions for use / Safety
Caution! When handling flammable or highly flammable liquids, explosion protection guidelines must be observed. All parts involved in transfer must be earthed to avoid electrostatic build-up (e.g. by using an anti-static set). Pay attention to the chemical resistance of the materials before use.

Scope of delivery

• StopCock PA, electroconductive
• Adapter for 3/4" inner threads

Features/Technical specifications

• General material: PA (Polyamide)
• Further materials: PTFE (Polytetrafluoroethylene)
• Connection type: Thread
• Thread: G 3/4 Zoll
• Version: Cap nut
• Additional thread: G 3/4 Zoll (External thread available)
• Colour: black
• Spigot outlet — Outer outlet Ø: 6 mm
• Outlet type: Angle discharge with spout (rotatable spout to prevent drips)
• Nominal diameter: 5 mm
• Operating pressure (at +20 °C): Pressure max. 20 bar
• Pressure note: Pressure-resistant up to 2 bar at 20 °C (without discharge bracket and grommet)
• Suitable for Ex zones: 0, 1, 2
• Explosion groups: IIA, IIB
• Type of spigot: plug valve
• Flow rate: low flow rate
• Special features: Tap can be freely positioned; connecting cap nut guarantees vertical position
• Dimensions: Length 150 mm, Width 33 mm, Height 95 mm
• Packaging unit: Piece
• Item number: 0525-1100
