Piston pump 5601-0401
wateracidfor coolant

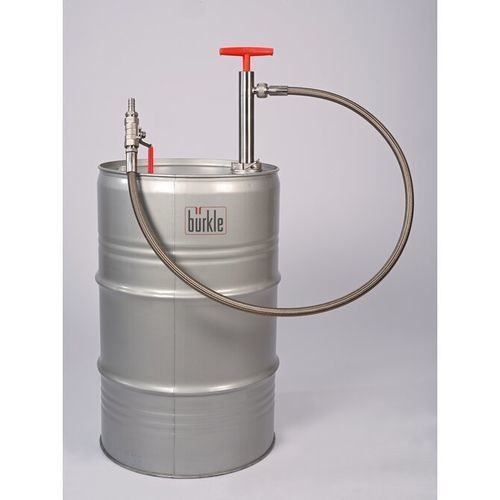

Piston pump - 5601-0401 - Bürkle - water / acid / for coolant
Piston pump - 5601-0401 - Bürkle - water / acid / for coolant
Piston pump - 5601-0401 - Bürkle - water / acid / for coolant - image - 2
Piston pump - 5601-0401 - Bürkle - water / acid / for coolant - image - 3
Piston pump - 5601-0401 - Bürkle - water / acid / for coolant - image - 4
Piston pump - 5601-0401 - Bürkle - water / acid / for coolant - image - 5
Piston pump - 5601-0401 - Bürkle - water / acid / for coolant - image - 6
Piston pump - 5601-0401 - Bürkle - water / acid / for coolant - image - 7
Add to favorites
Compare this product

Characteristics

Technology
piston
Fluid
water, acid, for coolant, for solvents, for alkalis, for bases, alcohol, beverage, fuel
Operation
manual
Priming
semi-submersible
Mobility
mobile
Domain
industrial, for the chemical industry, for the food industry, for the pharmaceutical industry, for the petrochemical industry, for the cosmetics industry
Applications
transfer, discharge, filling, transport
Material
stainless steel, PTFE
Fluid specification
for aggressive media, for flammable fluids
Protection level
chemical-resistant, corrosion-resistant
Flow

Max.: 22 l/min
(5.81179 us gal/min)

Min.: 9 l/min
(2.37755 us gal/min)

Output diameter

32 mm
(1.26 in)

Description

Filling pump with flexible hose and shut-off valve > Ideal for highly flammable or aggressive liquids > Meets the highest safety standards > Economical and durable > Flexibility in the positioning of the filling container This stainless steel barrel pump has a flexible discharge hose with stopcock for maximum flexibility when filling liquids. The 1.2m discharge hose directs the liquid directly into the desired container. This gives you the freedom to place the container in a convenient position regardless of the position of the drum pump. The stopcock controls the flow of liquid, allowing precise dosing and preventing unwanted spillage. Stainless steel drum pumps are powerful and versatile piston pumps for transferring flammable or aggressive liquids and chemicals. Their electrical conductivity makes the drum pumps ideal for highly flammable or combustible liquids. They have been specially developed for use in zones 0 and 1 (explosion groups II A and II B) and are DEKRA-tested. When used for flammable media, the pumps must be grounded. The PTFE seals not only guarantee high chemical resistance, but also excellent sliding properties during the pumping process. Stainless steel drum pumps are very flexible and versatile. They are ideally suited for a wide variety of drums, containers or other receptacles (approx. 60 to 1000 l capacity, up to 91 cm depth) and are thus true all-rounders in the workshop or production. Compared to conventional solvent pumps for highly flammable liquids, our stainless steel drum pumps offer excellent value for money.
