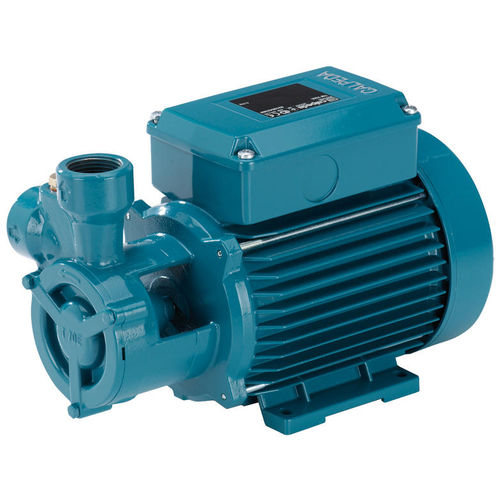

Water pump T, TP
electricself-primingperipheral

water pump
water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
electric
Priming
self-priming
Technology
peripheral
Domain
industrial
Applications
circulation, for air conditioning, cooling
Other characteristics
close-coupled
Flow

Min.: 0.06 m³/h
(2.11888 ft³/h)

Max.: 6 m³/h
(211.888 ft³/h)

Head

Min.: 5 m
(16'04" )

Max.: 165 m
(541'04" )

Power

Min.: 0.33 kW
(0.45 hp)

Max.: 7.5 kW
(10.2 hp)

Description

Technical data Construction Close-coupled peripheral pumps (regenerative pumps) with turbine impeller. B-T, B-TP: bronze versions. Applications For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials. For increasing network pressure (follow local specifications). For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed.
