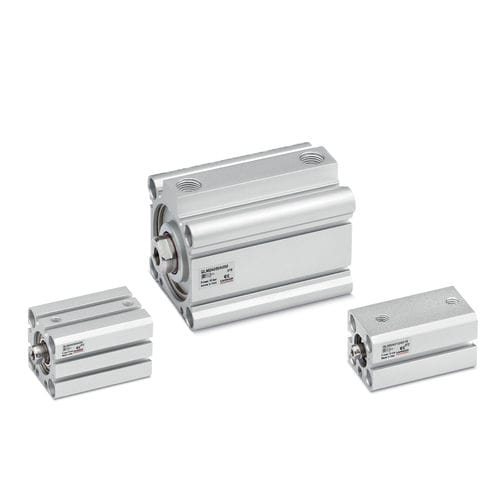

Pneumatic cylinder QL

magnetic pistondouble-actingstainless steel

Series QL short-stroke cylinders are available in different bore sizes and are designed to cover a wide range of application needs, from light duties in packaging or assembly to the demanding requirements of handling components for woodworking. The low weight of the aluminium body and the compact design makes this cylinder range quick and easy to install, even in confined or awkward spaces. The Series QL is available in double acting, magnetic and non-magnetic designs. A full range of accessories such as standard, large and narrow mounting feet enhance the applicability and usability of the range. Materials - body: anodized AL rod: rolled stainless steel piston seals: NBR rod seals: PU Mounting - by means of screws or brackets Fluid - filtered air class 7.8.4 as indicated by ISO 8573-1. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
