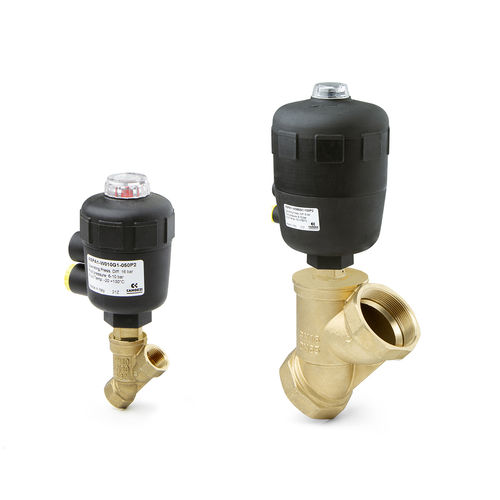

Piston valve ASP series
pneumatically-operatedcontrolfor hot water

piston valve
piston valve
piston valve
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
pneumatically-operated
Function
control
Media
for hot water, for gas, for steam
Body
threaded, angle seat, rugged, stainless steel, brass, aluminum
Applications
for industrial applications, for liquids, for the gas industry
Number of channels
2/2-way
Other characteristics
normally closed, double-acting, normally open, for high flow rates
DN

Min.: 0.375 in

Max.: 2.5 in

Pressure

Min.: 0 bar
(0 psi)

Max.: 20 bar
(290.1 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 130 °C
(266 °F)

Flow rate

Min.: 3 m³/h
(105.94 ft³/h)

Max.: 65 m³/h
(2,295.45 ft³/h)

Description

Directly operated angle seat valves are ideal solutions for industrial applications requiring robust and resistant solutions. They are compatible with main gas supplies, inert liquids, and fluids containing suspended solid particulate matter. They are available in different models and with threaded connections ranging from 3/8” to 2-1/2”. It comes in 2 versions, one with the flow direction above the poppet for gas and steam applications and the other with the flow direction under the poppet, for liquids. Benefits: High flow rate Low fluid resistance Versions available that prevent water-hammering effects Compliant with Directive PED 2014/68/EU Sectors and applications: Textile - Water treatment - Stream & Hotwater Treatment - Energy - Pulp & Paper - Air & gas treatment
