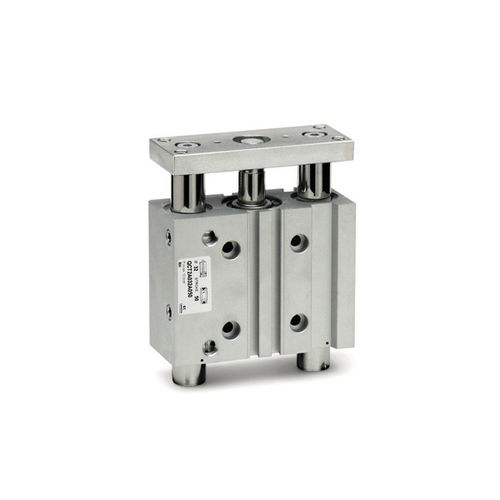

Cylinder with integrated guides QCT, QCB seriespneumaticmagnetic pistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- magnetic piston
- Configuration
- double-acting
- Material
- anodized aluminum
- Other characteristics
- compact, with integrated guides
- Stroke
Max.: 200 mm
(7.874 in)Min.: 20 mm
(0.787 in)- Pressure
Max.: 10 bar
(145.04 psi)Min.: 1 bar
(14.5 psi)- Speed
Max.: 500 mm/s
(1.64 ft/s)Min.: 50 mm/s
- Operating Temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)
Description
These actuators, suitable for use in very limited space, are available in two versions.
QCT version: with sintered bronze bushes, suitable when the side loads applied to the cylinder are high.
QCB version: with linear ball bearings, suitable for high precision and fast cycling applications.
Both versions are equipped with fixed cushioning to prevent direct impact with the end covers. The design of the cylinder body allows the mounting of the cylinder using either top, bottom or side faces. Several “T” shaped grooves in two faces allow sensors to be fitted in a number of positions.
Out of standard strokes are available on demand only.
