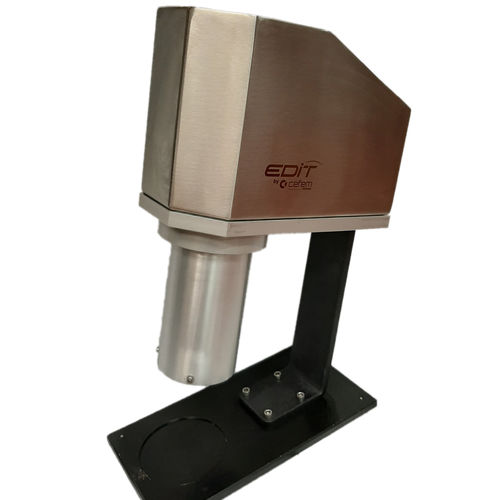

Coating thickness measuring system NIRONE COATING

coating weighthumidityinfrared

On line Continuously In real time Contactless On a conveyor belt Ideal measurement device for improving yield and quality control for industries. Advantages : Simultaneous measurement of 2 constituents Reliable and precise infrared technology On line contactless measurement Fast and continuous measurement (1 measure every 33ms ) Measurement spot to 70mm. Insensitive to granulometric , colour, height variations, and ambient luminosity. Very easy to install Air blowing system for optical cleaning Working principle : The equipment works off the principle of infrared absorption spectroscopy. As the spectral signature of certain constituents is known, by measuring the absorption at certain wave-lengths, it is possible to determine the content of the constituent in the material. An infrared source irradiates the sample, passing through interferential filters that only allow “useful” wavelengths to pass. The backscattered light flow is then collected using a parabolic mirror that concentrates the flow towards a sensor. The content of the constituent being sought can be deduced by an analysis of the measured values correlated with a calibration.
