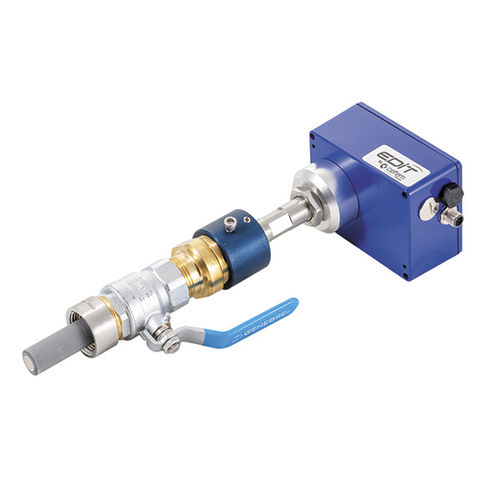

Microwave flow meter Dynamic FLOW

massfor bulk materialsin-line

Specially developed for bulk industries All types of metallic closed pipes Flow detection from some Kg/h to several T/h Freefall applications Pneumatic conveyor Optimize and follow the material consumed Improve the performance and the yield. Advantages : Beyond the working principle, the technology developed for Dynamic Flow allows the equipment to compensate for variations in : Concentration Velocity of particles Granulometrics Temperature FOR BETTER PRECISION. FOR BETTER REPEATABILITY. FOR BETTER STABILITY OVER TIME Contactless measurement Very easy-to-use device No maintenance No remote electronic handling Working principle : Dynamic Flow uses the principle of the Doppler effect. A microwave signal is emitted, thereby generating an electromagnetic field inside the pipe. The particles passing in mouvement in this field generate a signal that varies in amplitude and in frequency. Dynamic flow : The rate of flow is deduced from a mathematical analysis combined with a calibration (with real measures). Flow no Flow : The threshold can be defined between 0 and 100% of flow A “switch” is activated when the sensor detects a superior or inferior fixed threshold.
