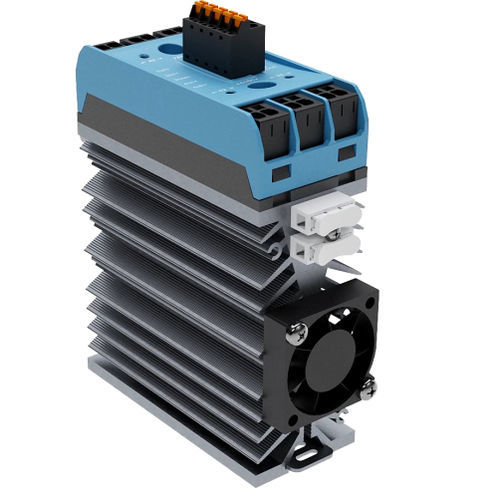

DC solid state relay SMQR9623410-WFF05

AC24VAC4 NO

Overview
The SMQR "ready to use" version is designed with a built-in heatsink. It is a four-leg solid-state relay module with push-in spring terminals for fast, tool-free wiring in industrial control panels.

Advantages

• Simple connection without physical constraint and without tools
• Fast wiring, even in tight spaces
• Wiring 100% secure, 70% faster: time saving
• Space saving thanks to a compact housing

Product details (listed item)
Part Number: SMQR9623410-WFF05
Short description: SSR push-in contactors 4×18A / 24-660 VAC / TVS / 4 ctrl 10-30 VDC / LED
Max. switching current per phase @40°C AC-1 (A): 18
Max. switching voltage: 24-660 VAC
Control voltage: 10-30 VDC
Specifications: Four-leg SSR, push-in spring terminals, zero-cross operation, output protection, heatsink included
Series: SMQR9 - heatsink included
Standards: CE, UL (cURus), UKCA
Availability: In stock 10 pcs
Unit price (excl. tax): 405.91 EUR

Technical specifications

• Series / Model: SMQR9
• Example part number: SMQR9623410-WFF05
• Configuration: Four-leg SSR with push-in spring terminals
• Max. switching current per phase @40°C (AC-1): 18 A
• Max. switching voltage: 24-660 VAC
• Control voltage: 10-30 VDC
• Operating mode: Zero cross
• Protection: Output protection included
• Heatsink: Built-in / included
• Indicators: LED (as per short description)
• Standards / Approvals: CE, UL (cURus), UKCA
