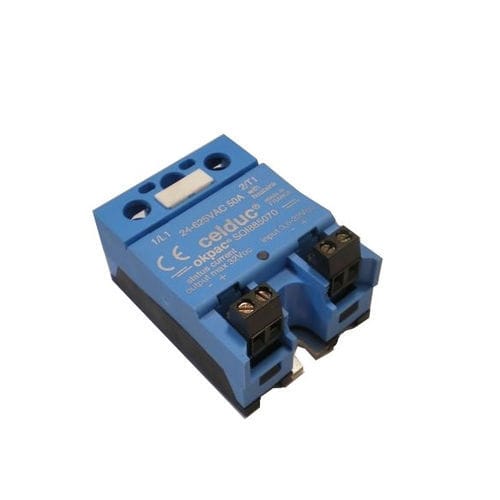

DC solid state relay SOI

AC24VAC32VDC

Overview
Single-phase solid state relay with load-current status output and zero-cross switching.

Product

• Part number: SOI885070
• Short description: SSR 50 A / 24–625 VAC / control 3.5–32 VDC / status output
• Series: SOI
• Function: Single-phase SSR — zero-cross switching — load-current status output — output protection
• Max. switching current per phase @40°C (AC-1): 60 A
• Max. switching voltage: 24–625 VAC
• Control voltage: 3.5–32 VDC
• Standards: CE; UL (cURus with SCCR 100kA); EAC; UKCA
• Documents available: Data-sheet; Installation instructions; CAD files 2D/3D
• Availability: In stock — 126 pcs
• Public unit price (excl. Taxes): 188.76 EUR
• Brand: celduc® relais

Applications

• (AC-1 / LC A) Heating elements
• (AC-3 / LC B) Motors
• (AC-5a / LC C) Discharge lamps
• (AC-5a / LC D) Incandescent light bulbs and infrared lamps
• (AC-5b / DC-6) LEDs
• (AC-6b / LC F) Capacitors
• (AC-14/AC-15/DC-13) Solenoid valves and electromagnets
• (AC-14/AC-15/DC-13/DC-14) Contactors

Technical specifications

• Part number: SOI885070
• Max. switching current per phase @40°C (AC-1): 60 A
• Max. switching voltage: 24–625 VAC
• Control voltage: 3.5–32 VDC
• Operating mode: Zero-cross switching
• Status output: Load-current status output present
• Output protection: Included
• Series: SOI
• Standards: CE; UL (cURus with SCCR 100kA); EAC; UKCA
• Housing type options (series): Hockey Puck, Standard
• Availability: In stock — 126 pcs
• Public unit price (excl. Taxes): 188.76 EUR
• Brand: celduc® relais
