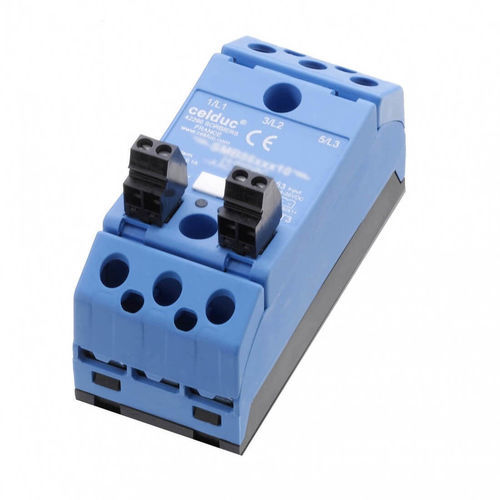

DC solid state relay SMB

AC24VACthree-phase

Overview
The SMB models are two-leg three-phase solid-state relays (SSR). Some second-generation SMB models include a diagnostic function.

sightpac® series
The sightpac® series is a compact 45 mm format with three solid-state outputs controlled by a single input. It operates like a standard solid-state relay: when the input signal is applied, each output conducts load current for its respective phase.

Example product (listed on this page)
SMB8670910 — ZC THREE PHASE SSR 2X75A / 24-520VAC / CTRL 4-30VDC

Technical specifications

• Part number (example): SMB8670910
• Series: SMB
• Type: Two-leg three-phase solid-state relay (SSR)
• Operation mode: Zero cross (ZC)
• Diagnostic feature: Included on some second-generation models
• Output protection: With output protection
• Max. switching current per phase @40°C (AC-1): 40 A
• Alternate short listing current: 2 x 75 A (listed in short description)
• Max. switching voltage: 150-520 VAC (table) — full range indicated in short description: 24-520 VAC
• Control voltage: 4-30 V DC
• Standards / Certifications: CE, EAC, UL (cURus), UKCA
• Availability (example product): Out of stock — lead time approx. 35 working day(s)
• Public unit price (excl. taxes) (example product): 301.11 EUR
