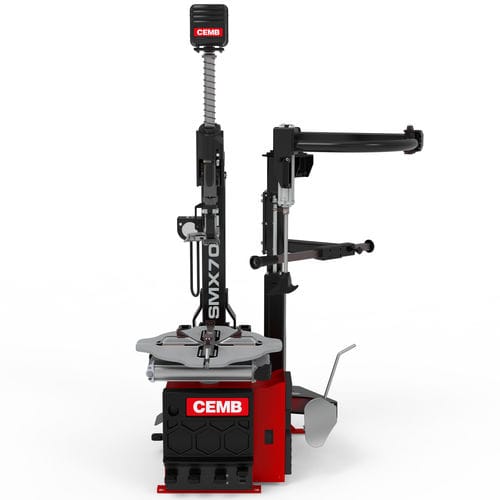

Car tire changer SMX70 LL

automaticleverlessvertical

Professional LeverLess tyre changer designed to operate on car or light commercial vehicle wheels up to 26″. It allows to operate on latest generation UHP and Run Flat wheels, particularly hard and challenging, thanks to the LeverLess system that reduces the physical effort by the operator. LeverLess demounting group with double support to the rim to reduce flexions and tensions on the bead and on the rim edge. Rear tilting post. Reinforced base vertical post structure and 60×60 mm horizontal arm grant maximum rigidity. Simultaneous vertical and horizontal arm locking system, vertical arm with spring return. Self-centering turntable to ease bead-breaking of the second tyre bead. Rim locking through opposed-jaws device, with 80mm diameter cylinders, which guarantees an optimal grip on all types of rims. Clamping capacity 10″–26″. New swivel fitting for a higher speed during rotation. Jaws with replaceable tips. Motoinverter Motor with progressive variation of speed. The inverter board is installed on the machine, away from the engine to overcome vibration and heat problems. Low power consumption at rest. High reliability and protection, with automatic alarm reset bringing the pedal to the resting position. Pedal-operated inflating device. Bead breaker with ergonomic arm to operate on wheels of 17” in width. Body with removable pedal unit for easy maintenance. Pedals positioned in line. TI-version (optional) with an effective inflation device for bead seating integrated in clamping jaws.
