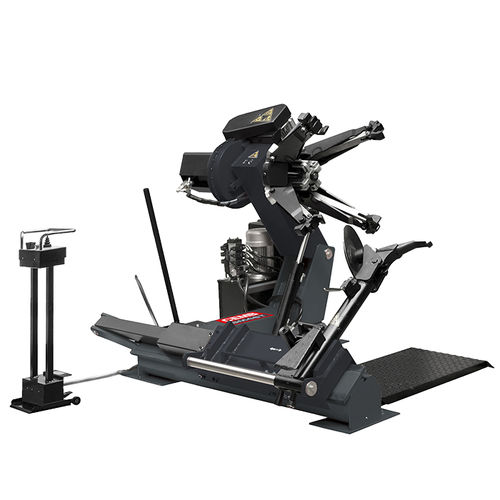

Truck tyre changer SM46T

for busessemi-automatic

Universal semi-automatic tyre changer for truck, bus, agriculture and earth moving vehicles Self-centering chuck to lock grooved and split ring rims from 14” to 46”, working capacity increasable to 56” using the optional extensions, 2-speed rotation in both directions of the self-centering chuck, automatic translational movement of tool-holder carriage. TOOL-HOLDER CARRIAGE Automatic traversing of the tool-holder carriage controlled by the on-purpose control unit. Automatic lifting and traversing of tool-holder arm in two different working positions. TOOL-HOLDER ARM Tool-holder arm lifting and tool rotation are manually achieved through the onpurpose unlocking device. The special conical shape of the bead breaker disc allows to obtain an easy dismounting of split ring rims BRONZE BEARINGS The chuck rotation housings are made in bronze. This device increases considerably the duration and reduces substantially any eventual mechanical play. INCREASED CARRIAGE STROKE The tool-holder carriage stoke has been increased in order to easily operate on wheels up to 1065 mm width.
