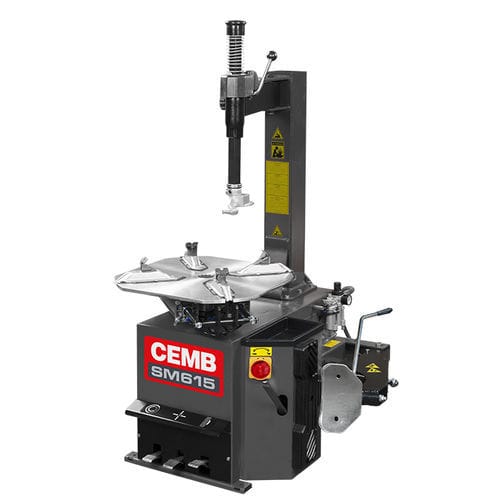

Car tyre changer SM615

semi-automaticvertical

Semi-automatic tyre changer with swing arm and 10”-24” locking capacity Semi-automatic tyre changer with 10”-24” locking capacity, ideal for use in repair shops and tyre shops. Designed to operate on car and light commercial vehicle wheels and on motorcycle wheels with the appropriate accessories. Swing arm Semi-automatic tyre changer with swing arm, vertical working arm with lever lock, side positioning of the tool with respect to the rim by means of a knob and vertical working arm with spring Fastening of the horizontal arm on the post has been designed to allow operating (with the appropriate accessories) on wheels with 6- to 23-inch rims (typical of motorcycles, karts, ATV wheels and hobby and gardening machines). Self-centring turntable 10 - 24” Self-centring plate with 10-24” locking capacity, double rotation and two speeds. Structure Body with extractable pedal unit to facilitate technical service, robust reduction unit, standard CE-certified inflation pressure limiter with provision for gun connection. Bead breaking arm Bead breaker with double-acting cylinder and fixed blade. SM615 HS Version complete with left side bead pressing HPX-S device for swing arm tyre changers to operate on particularly hard, large-sized and low profile tyres. Equipped with rim pressing tool, bead pressing roller arm and bead lifting disc.
