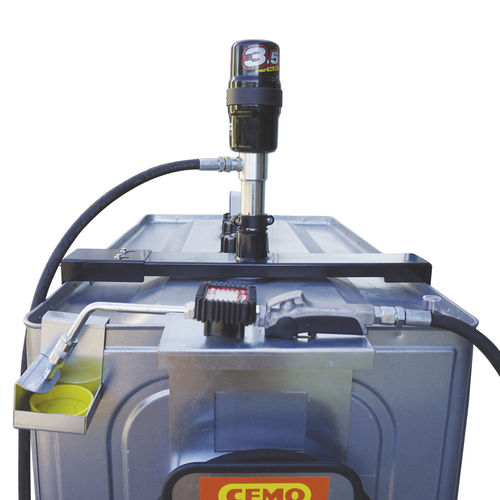

Storage tank LUB ECO
distributionoilstainless steel

storage tank
storage tank
storage tank
Add to favorites
Compare this product


Characteristics

Function
storage, distribution
Product applications
oil
Material
stainless steel, polyethylene
Other characteristics
vertical
Capacity

Max.: 1,000 l (264.2 gal)

Min.: 750 l (198.1 gal)

Pressure

Max.: 8 bar (116 psi)

Min.: 3 bar (43.5 psi)

Description

Compact lubricant system ECO, UNI 7501 Order-number: 8815 Details Single tank from HDPE with integral galvanized steel plate bund, standard accessories such as pallet feet, level indicator, optical leak detector, suction set, pump, 4 m filling hose and manual digital flow meter, with mounting and drip cup. Without installation. For above ground storage of clean oil with a flash point > 55 °C. Also approved for indoor installation in water protected areas without a bund*. Pneumatic pump (technical data) Pneumatic pump 3:1 (cannot be calibrated*), ratio 3:1, operation at 6 - 8 bar, max. delivery rate 14 l/min, compressedair connection %' IG, medium outlet Vz IG, air consumption approx. 330 l/min, Suction connection 1" IG, operation, only with service unit, delivery medium oil up to SAE 90 Description Compact lubricant systems UNI 750, with pneumatic pump 3:1,4 m with hose holder, dimensions: 108x77 x 180 cm
