gas-insulated circuit breaker / high-voltage / outdoor

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
gas-insulated circuit breaker gas-insulated circuit breaker
{{requestButtons}}

Characteristics

  • Type:

    gas-insulated

  • Electrical characteristics:

    high-voltage

  • Other characteristics:

    outdoor

  • Current:

    Min.: 0 A

    Max.: 3,150 A

  • VAC:

    Min.: 0 kV

    Max.: 170 kV

Description

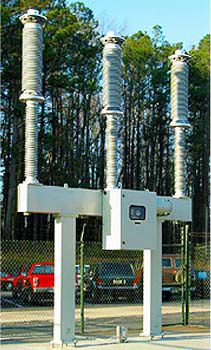

The 170 kV outdoor GCB is designed and developed for transmission network. The GCBs are of Live Tank Design with motor or manual charged spring opening-spring closing operating mechanism and are capable of interrupting all possible switching duties. The breakers are of single break interrupter design and employ dual flow puffer action for current interruption. This ensures high operational reliability and safety of power transmission and distribution system.
The GCBs are capable of clearing the severe rate of rise of recovery voltage due to short line faults and high recovery voltage peak due to out of phase switching. Small currents such as capacitor bank switching currents, transformer magnetising currents, cable or line charging current are interrupted smoothly without any re-strikes or re-ignition and over voltages are minimized
