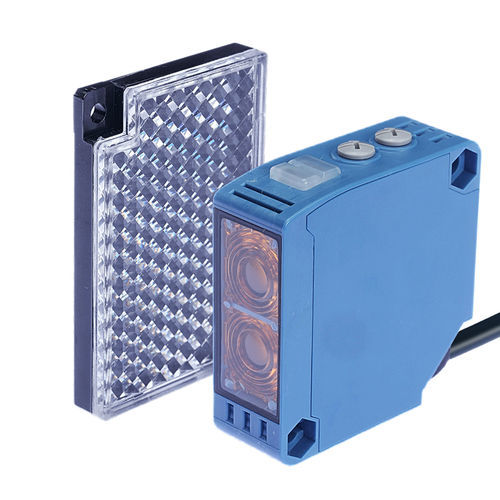

Polarized retroreflective photoelectric sensor CPK-RMF6ME3-Arectangularsquaremultibeam
Add to favorites
Compare this product
Characteristics
- Sensing mode
- polarized retroreflective
- Housing
- rectangular, square
- Type of beam
- infrared, red light, multibeam
- Other characteristics
- compact, plastic, polarized, high-performance, high-speed, waterproof, intrinsically safe, IP67
- Applications
- for food industry applications, for logistics, for object detection, for robotics, for plastics, for gate, for packaging machines, for automatic doors
- Maximum range
Max.: 6 m
(19'08" )Min.: 0.1 m
(0'03" )
Description
1. **Naming Rule**
Detection principle: Polarized retro‑reflective; Power supply: DC12‑24V.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated / M12 connector type.
‑ Red‑light 0.1‑6 m: CPK‑RMR6ME3
‑ Infrared‑light 0.1‑6 m: CPK‑RMF6ME3
2. **Available Part Numbers**
CPK‑RMR6ME3 (Red‑light, 0.1‑6 m), CPK‑RMF6ME3 (Infrared‑light, 0.1‑6 m);
Cable version: CPK‑RMR6MT3, CPK‑RMF6MT3;
M12 connector‑A version: CPK‑RMR6ME3‑A, CPK‑RMF6ME3‑A, CPK‑RMR6MT3‑A, CPK‑RMF6MT3‑A.
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑6 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Beam pointing angle: 1.5°.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated or M12‑A connector available; NPN/PNP transistor open‑collector output.
6. **Key Features**
‑ Large‑square housing, supply voltage DC12‑24V (ripple(P‑P)10% or below DC10‑30V)
‑ Strong anti‑vibration and shock resistance
‑ Response time: ≤0.5 ms, suitable for high‑speed detection
‑ Load current: 100 mA max; residual voltage 3V or below (cable length 2m)
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+65 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
NPN or PNP transistor open‑collector output, max load current 100 mA.1. **Naming Rule**
Detection principle: Polarized retro‑reflective; Power supply: DC12‑24V.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated / M12 connector type.
‑ Red‑light 0.1‑6 m: CPK‑RMR6ME3
‑ Infrared‑light 0.1‑6 m: CPK‑RMF6ME3
2. **Available Part Numbers**
CPK‑RMR6ME3 (Red‑light, 0.1‑6 m), CPK‑RMF6ME3 (Infrared‑light, 0.1‑6 m);
Cable version: CPK‑RMR6MT3, CPK‑RMF6MT3;
M12 connector‑A version: CPK‑RMR6ME3‑A, CPK‑RMF6ME3‑A, CPK‑RMR6MT3‑A, CPK‑RMF6MT3‑A.
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑6 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Beam pointing angle: 1.5°.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated or M12‑A connector available; NPN/PNP transistor open‑collector output.
6. **Key Features**
‑ Large‑square housing, supply voltage DC12‑24V (ripple(P‑P)10% or below DC10‑30V)
‑ Strong anti‑vibration and shock resistance
‑ Response time: ≤0.5 ms, suitable for high‑speed detection
‑ Load current: 100 mA max; residual voltage 3V or below (cable length 2m)
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+65 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
NPN or PNP transistor open‑collector output, max load current 100 mA.1. **Naming Rule**
Detection principle: Polarized retro‑reflective; Power supply: DC12‑24V.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated / M12 connector type.
‑ Red‑light 0.1‑6 m: CPK‑RMR6ME3
‑ Infrared‑light 0.1‑6 m: CPK‑RMF6ME3
2. **Available Part Numbers**
CPK‑RMR6ME3 (Red‑light, 0.1‑6 m), CPK‑RMF6ME3 (Infrared‑light, 0.1‑6 m);
Cable version: CPK‑RMR6MT3, CPK‑RMF6MT3;
M12 connector‑A version: CPK‑RMR6ME3‑A, CPK‑RMF6ME3‑A, CPK‑RMR6MT3‑A, CPK‑RMF6MT3‑A.
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑6 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Beam pointing angle: 1.5°.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated or M12‑A connector available; NPN/PNP transistor open‑collector output.
6. **Key Features**
‑ Large‑square housing, supply voltage DC12‑24V (ripple(P‑P)10% or below DC10‑30V)
‑ Strong anti‑vibration and shock resistance
‑ Response time: ≤0.5 ms, suitable for high‑speed detection
‑ Load current: 100 mA max; residual voltage 3V or below (cable length 2m)
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+65 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
NPN or PNP transistor open‑collector output, max load current 100 mA.
Detection principle: Polarized retro‑reflective; Power supply: DC12‑24V.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated / M12 connector type.
‑ Red‑light 0.1‑6 m: CPK‑RMR6ME3
‑ Infrared‑light 0.1‑6 m: CPK‑RMF6ME3
2. **Available Part Numbers**
CPK‑RMR6ME3 (Red‑light, 0.1‑6 m), CPK‑RMF6ME3 (Infrared‑light, 0.1‑6 m);
Cable version: CPK‑RMR6MT3, CPK‑RMF6MT3;
M12 connector‑A version: CPK‑RMR6ME3‑A, CPK‑RMF6ME3‑A, CPK‑RMR6MT3‑A, CPK‑RMF6MT3‑A.
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑6 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Beam pointing angle: 1.5°.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated or M12‑A connector available; NPN/PNP transistor open‑collector output.
6. **Key Features**
‑ Large‑square housing, supply voltage DC12‑24V (ripple(P‑P)10% or below DC10‑30V)
‑ Strong anti‑vibration and shock resistance
‑ Response time: ≤0.5 ms, suitable for high‑speed detection
‑ Load current: 100 mA max; residual voltage 3V or below (cable length 2m)
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+65 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
NPN or PNP transistor open‑collector output, max load current 100 mA.1. **Naming Rule**
Detection principle: Polarized retro‑reflective; Power supply: DC12‑24V.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated / M12 connector type.
‑ Red‑light 0.1‑6 m: CPK‑RMR6ME3
‑ Infrared‑light 0.1‑6 m: CPK‑RMF6ME3
2. **Available Part Numbers**
CPK‑RMR6ME3 (Red‑light, 0.1‑6 m), CPK‑RMF6ME3 (Infrared‑light, 0.1‑6 m);
Cable version: CPK‑RMR6MT3, CPK‑RMF6MT3;
M12 connector‑A version: CPK‑RMR6ME3‑A, CPK‑RMF6ME3‑A, CPK‑RMR6MT3‑A, CPK‑RMF6MT3‑A.
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑6 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Beam pointing angle: 1.5°.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated or M12‑A connector available; NPN/PNP transistor open‑collector output.
6. **Key Features**
‑ Large‑square housing, supply voltage DC12‑24V (ripple(P‑P)10% or below DC10‑30V)
‑ Strong anti‑vibration and shock resistance
‑ Response time: ≤0.5 ms, suitable for high‑speed detection
‑ Load current: 100 mA max; residual voltage 3V or below (cable length 2m)
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+65 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
NPN or PNP transistor open‑collector output, max load current 100 mA.1. **Naming Rule**
Detection principle: Polarized retro‑reflective; Power supply: DC12‑24V.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated / M12 connector type.
‑ Red‑light 0.1‑6 m: CPK‑RMR6ME3
‑ Infrared‑light 0.1‑6 m: CPK‑RMF6ME3
2. **Available Part Numbers**
CPK‑RMR6ME3 (Red‑light, 0.1‑6 m), CPK‑RMF6ME3 (Infrared‑light, 0.1‑6 m);
Cable version: CPK‑RMR6MT3, CPK‑RMF6MT3;
M12 connector‑A version: CPK‑RMR6ME3‑A, CPK‑RMF6ME3‑A, CPK‑RMR6MT3‑A, CPK‑RMF6MT3‑A.
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑6 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Beam pointing angle: 1.5°.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated or M12‑A connector available; NPN/PNP transistor open‑collector output.
6. **Key Features**
‑ Large‑square housing, supply voltage DC12‑24V (ripple(P‑P)10% or below DC10‑30V)
‑ Strong anti‑vibration and shock resistance
‑ Response time: ≤0.5 ms, suitable for high‑speed detection
‑ Load current: 100 mA max; residual voltage 3V or below (cable length 2m)
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+65 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
NPN or PNP transistor open‑collector output, max load current 100 mA.
