Diffuse reflective sensor photoelectric sensor CPK-DF2.5ME3
rectangularsquareinfrared

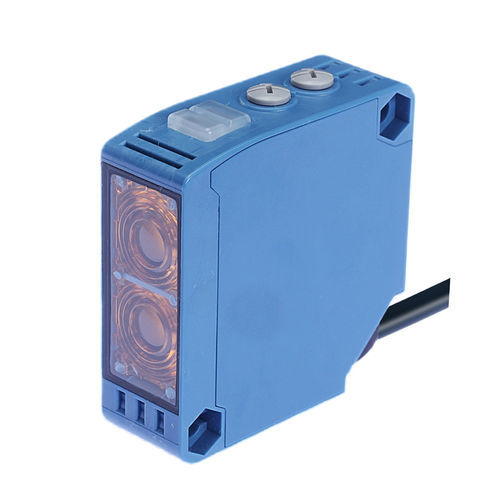

Diffuse reflective sensor photoelectric sensor - CPK-DF2.5ME3 - CHANKO SENSOR - rectangular / square / infrared
Diffuse reflective sensor photoelectric sensor - CPK-DF2.5ME3 - CHANKO SENSOR - rectangular / square / infrared
Diffuse reflective sensor photoelectric sensor - CPK-DF2.5ME3 - CHANKO SENSOR - rectangular / square / infrared - image - 2
Diffuse reflective sensor photoelectric sensor - CPK-DF2.5ME3 - CHANKO SENSOR - rectangular / square / infrared - image - 3
Diffuse reflective sensor photoelectric sensor - CPK-DF2.5ME3 - CHANKO SENSOR - rectangular / square / infrared - image - 4
Add to favorites
Compare this product

Characteristics

Sensing mode
diffuse reflective sensor
Housing
rectangular, square
Type of beam
infrared, red light
Other characteristics
plastic, long-range, waterproof
Applications
for food industry applications, for logistics, for object detection, for gate, for automatic doors, for robotics, for packaging machines, for plastics, for small parts
Maximum range

Max.: 2.5 m
(8'02" )

Min.: 0 m
(0'00" )

Description

Overview
  • Series: CPK photoelectric sensors
  • Model: CPK-DF2.5ME3
  • Detection principle: Diffuse-reflective (infrared)
  • Detection range: 0–2.5 m


Main features
  • Body shape: Large square
  • Dimensions: 50×18×50 mm
  • Cable length: 2 m (moulded cable)
  • Detection direction: Front
  • Output: NPN/PNP, NO/NC
  • Power supply: DC 12–24 V (4-wire)
  • Response frequency: 1000 Hz; response time: 500 μs
  • Light source: Infrared
  • Hysteresis: ≤20% of detection distance


Mechanical & materials
  • Housing: ABS
  • Lens / display window: PMMA
  • Cable: PVC
  • Weight: approx. 132 g


Electrical & output parameters
  • Signal type: Switching
  • Operating modes: Light ON / Dark ON
  • Current consumption: ≤25 mA
  • Residual voltage: ≤3 V
  • Load current: ≤100 mA (with 2 m cable residual voltage ≤3 V)
  • Insulation resistance: ≥20 MΩ (DC 500 V megohmmeter)
  • Protection circuits: Short-circuit protection, reverse-output protection


Indicators, protection & durability
  • Indicator LEDs: Operation (orange), Stability (green), Power (green)
  • Protection rating: IP65
  • Withstand voltage: AC 1500 V 50/60 Hz 1 min (charged part vs. housing)
  • Shock resistance: 300 m/s², 10 times per X/Y/Z
  • Vibration resistance: 10–55 Hz, 1.5 mm amplitude, 2 h per X/Y/Z


Operating environment
  • Operating temperature: -25 °C to 55 °C
  • Operating/storage humidity: 35–95% RH (no condensation)
  • Ambient illumination: ≤10000 lx


Standard test & accessories
  • Standard test object: White paper 300×300 mm
  • Accessories included: User manual, mounting bracket, inspection certificate


Recommended applications
  • 3C electronics production lines
  • Automated parking systems
  • Logistics and warehouse automation


Technical specifications (summary)
  • Model: CPK-DF2.5ME3
  • Detection distance: 0–2.5 m
  • Supply voltage: DC 12–24 V
  • Output: NPN/PNP NO/NC
  • IP rating: IP65
  • Response time: 500 μs; Frequency: 1000 Hz
  • Dimensions: 50×18×50 mm; Cable: 2 m
  • Materials: ABS housing, PMMA lens, PVC cable
