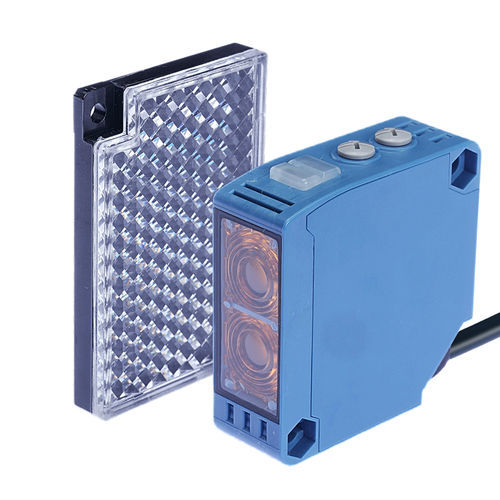

Retroreflective photoelectric sensor CPK-RMF6ME3-Arectangularinfraredpolarized
Add to favorites
Compare this product
Characteristics
- Sensing mode
- retroreflective
- Housing
- rectangular
- Type of beam
- infrared
- Other characteristics
- plastic, polarized
- Applications
- for packaging machines, for logistics
- Maximum range
Max.: 6 m
(19'08" )Min.: 0 m
(0'00" )
Description
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Accessories
Applications
- Type: Polarized retro-reflective photoelectric sensor
- Detection distance: 0–6 m
- Housing: large square, 50×18×50 mm
- Detection principle: polarized mirror/retro-reflective
- Output: NPN/PNP selectable, NO/NC
- Supply voltage: DC 12–24 V
Technical specifications
- Detection distance: 0–6 m
- Dimensions: 50×18×50 mm
- Cable length: 0.5 m
- Detection direction: frontal
- Response frequency: 1000 Hz
- Response time: 500 μs
- Light source: infrared
- Standard target: opaque object Ø ≥ 75 mm
- Hysteresis: ≤ 20% of detection distance
- Beam angle: ≤ 1.5°
- Accessories: manual, mounting bracket, reflector, certificate
- Materials: housing ABS; lens/window PMMA; cable PVC
Mechanical / Electrical parameters
- Output mode: NPN/PNP NO/NC
- Power supply: DC 12–24 V, four-wire DC
- Protection rating: IP65
- Connection: M12 connector
- Signal type: switching output
- Operation mode: Light ON / Dark ON
- Current consumption: < 25 mA
- Indicators: action (orange), stability (green), power (green)
- Protection circuits: short-circuit and reverse-polarity protection
- Residual voltage: < 3 V
- Load current: < 100 mA (residual voltage < 3 V at 2 m cable)
- Insulation resistance: > 20 MΩ (DC 500 V)
- Shock resistance: 300 m/s², X/Y/Z 10 times
- Dielectric strength: AC 1500 V 50/60 Hz 1 min (live parts to housing)
- Vibration: 10–55 Hz, amplitude 1.5 mm, X/Y/Z 2 h
- Weight: approx. 146 g
Operating environment
- Ambient temperature: -25 °C to 55 °C
- Humidity: 35–95% RH (no condensation) for operation/storage
- Ambient illumination: < 10,000 lx
Accessories
- User manual
- Mounting bracket
- Reflector
- Certificate
Applications
- Object detection in industrial automation, conveyors and packaging lines
- Reliable detection of shiny or mirrored surfaces using polarization
- Positioning and presence sensing of opaque parts (Ø ≥ 75 mm)
