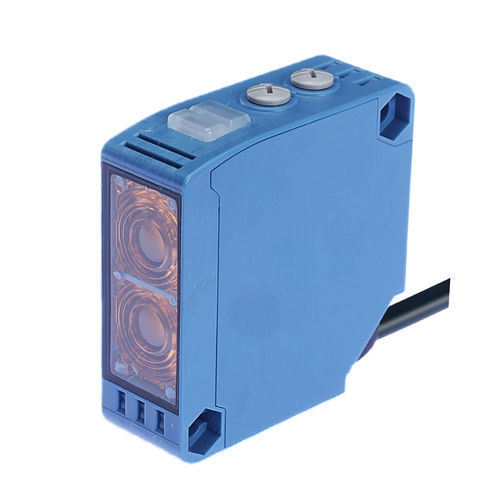

Diffuse reflective photoelectric sensor CPK-DF2.5MR3rectangularsquaremultibeam
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective
- Housing
- rectangular, square
- Type of beam
- infrared, red light, multibeam
- Other characteristics
- plastic, waterproof, IP67
- Applications
- for food industry applications, for logistics, for object detection, for robotics, for gate, for packaging machines, for automatic doors
- Maximum range
Min.: 0 m
(0'00" )Max.: 2.5 m
(8'02" )
Description
1. **Naming Rule**
Detection principle: Diffuse‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 2.5 m: CPK‑DR2.5MR3
‑ Infrared‑light 2.5 m: CPK‑DF2.5MR3
2. **Available Part Numbers**
CPK‑DR2.5MR3 (Red‑light, 2.5 m), CPK‑DF2.5MR3 (Infrared‑light, 2.5 m)
3. **Detection Principle**
Diffuse‑reflective type. The sensor emits light, and detects the target object by receiving the light reflected directly from the object surface.
4. **Sensing Range**
Sensing distance: 2.5 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Hysteresis: ≤20% of sensing distance.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Single‑turn sensitivity adjustment (receiver side)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.1. **Naming Rule**
Detection principle: Diffuse‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 2.5 m: CPK‑DR2.5MR3
‑ Infrared‑light 2.5 m: CPK‑DF2.5MR3
2. **Available Part Numbers**
CPK‑DR2.5MR3 (Red‑light, 2.5 m), CPK‑DF2.5MR3 (Infrared‑light, 2.5 m)
3. **Detection Principle**
Diffuse‑reflective type. The sensor emits light, and detects the target object by receiving the light reflected directly from the object surface.
4. **Sensing Range**
Sensing distance: 2.5 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Hysteresis: ≤20% of sensing distance.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Single‑turn sensitivity adjustment (receiver side)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.1. **Naming Rule**
Detection principle: Diffuse‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 2.5 m: CPK‑DR2.5MR3
‑ Infrared‑light 2.5 m: CPK‑DF2.5MR3
2. **Available Part Numbers**
CPK‑DR2.5MR3 (Red‑light, 2.5 m), CPK‑DF2.5MR3 (Infrared‑light, 2.5 m)
3. **Detection Principle**
Diffuse‑reflective type. The sensor emits light, and detects the target object by receiving the light reflected directly from the object surface.
4. **Sensing Range**
Sensing distance: 2.5 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Hysteresis: ≤20% of sensing distance.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Single‑turn sensitivity adjustment (receiver side)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.
Detection principle: Diffuse‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 2.5 m: CPK‑DR2.5MR3
‑ Infrared‑light 2.5 m: CPK‑DF2.5MR3
2. **Available Part Numbers**
CPK‑DR2.5MR3 (Red‑light, 2.5 m), CPK‑DF2.5MR3 (Infrared‑light, 2.5 m)
3. **Detection Principle**
Diffuse‑reflective type. The sensor emits light, and detects the target object by receiving the light reflected directly from the object surface.
4. **Sensing Range**
Sensing distance: 2.5 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Hysteresis: ≤20% of sensing distance.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Single‑turn sensitivity adjustment (receiver side)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.1. **Naming Rule**
Detection principle: Diffuse‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 2.5 m: CPK‑DR2.5MR3
‑ Infrared‑light 2.5 m: CPK‑DF2.5MR3
2. **Available Part Numbers**
CPK‑DR2.5MR3 (Red‑light, 2.5 m), CPK‑DF2.5MR3 (Infrared‑light, 2.5 m)
3. **Detection Principle**
Diffuse‑reflective type. The sensor emits light, and detects the target object by receiving the light reflected directly from the object surface.
4. **Sensing Range**
Sensing distance: 2.5 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Hysteresis: ≤20% of sensing distance.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Single‑turn sensitivity adjustment (receiver side)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.1. **Naming Rule**
Detection principle: Diffuse‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 2.5 m: CPK‑DR2.5MR3
‑ Infrared‑light 2.5 m: CPK‑DF2.5MR3
2. **Available Part Numbers**
CPK‑DR2.5MR3 (Red‑light, 2.5 m), CPK‑DF2.5MR3 (Infrared‑light, 2.5 m)
3. **Detection Principle**
Diffuse‑reflective type. The sensor emits light, and detects the target object by receiving the light reflected directly from the object surface.
4. **Sensing Range**
Sensing distance: 2.5 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
Hysteresis: ≤20% of sensing distance.
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Single‑turn sensitivity adjustment (receiver side)
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.
