Diffuse reflective sensor photoelectric sensor CPK-DR1ME3
diffuse reflectiverectangularsquare

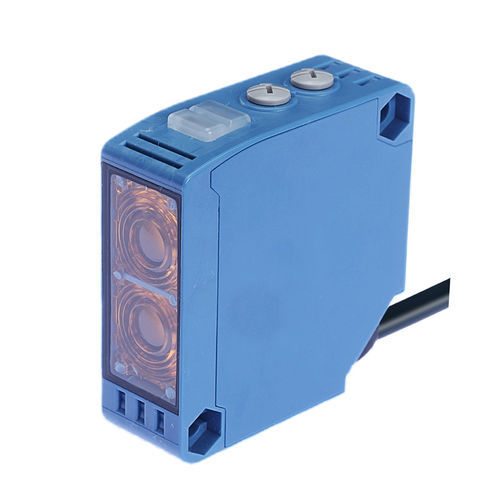

Diffuse reflective sensor photoelectric sensor - CPK-DR1ME3 - CHANKO SENSOR - diffuse reflective / rectangular / square
Diffuse reflective sensor photoelectric sensor - CPK-DR1ME3 - CHANKO SENSOR - diffuse reflective / rectangular / square
Diffuse reflective sensor photoelectric sensor - CPK-DR1ME3 - CHANKO SENSOR - diffuse reflective / rectangular / square - image - 2
Diffuse reflective sensor photoelectric sensor - CPK-DR1ME3 - CHANKO SENSOR - diffuse reflective / rectangular / square - image - 3
Diffuse reflective sensor photoelectric sensor - CPK-DR1ME3 - CHANKO SENSOR - diffuse reflective / rectangular / square - image - 4
Diffuse reflective sensor photoelectric sensor - CPK-DR1ME3 - CHANKO SENSOR - diffuse reflective / rectangular / square - image - 5
Add to favorites
Compare this product

Characteristics

Sensing mode
diffuse reflective sensor, diffuse reflective
Housing
rectangular, square
Type of beam
infrared, red light
Other characteristics
plastic, long-range, waterproof
Applications
for food industry applications, for logistics, for object detection, for gate, for automatic doors, for robotics, for packaging machines, for plastics, for small parts
Maximum range

Max.: 1 m
(3'03" )

Min.: 0 m
(0'00" )

Description

Product series
  • CPK series photoelectric sensor


Overview
  • Detection distance: 0–1 m
  • Housing shape: large square
  • Sensing principle: diffuse reflective
  • Dimensions: 50 × 18 × 50 mm
  • Output: NPN/PNP, NO/NC
  • Supply voltage: DC 12–24 V


Technical specifications
  • Detection distance: 0–1 m
  • Cable length: 2 m
  • Sensing direction: frontal
  • Response frequency: 1000 Hz
  • Response time: 500 μs
  • Light source: red light
  • Accessories: user manual, mounting bracket, certificate
  • Hysteresis: less than 20% of detection distance
  • Standard target: white drawing paper 300 × 300 mm
  • Materials: housing ABS; lens/window PMMA; cable PVC


Mechanical / Electrical parameters
  • Output: NPN/PNP, NO/NC
  • Supply voltage: DC 12–24 V
  • Power wiring: 4-wire DC
  • Protection rating: IP65
  • Connection: molded cable
  • Signal type: switching
  • Operating mode: Light ON / Dark ON
  • Current consumption: < 25 mA
  • Indicators: operation (orange), stability (green), power (green)
  • Protection circuits: short-circuit and reverse-output protection
  • Saturation voltage: < 3 V
  • Load current: < 100 mA (saturation voltage < 3 V with 2 m cable)
  • Insulation resistance: > 20 MΩ (DC 500 V megger)
  • Shock resistance: 300 m/s², 10 times each on X, Y, Z
  • Dielectric strength: AC 1500 V 50/60 Hz 1 min between live parts and housing
  • Vibration: 10–55 Hz, amplitude 1.5 mm, 2 h each on X, Y, Z
  • Weight: approx. 132 g


Operating environment
  • Operating temperature: -25 °C to 55 °C
  • Operating / storage humidity: 35–95% RH (no condensation)
  • Ambient illumination: < 10,000 lx


Accessories
  • User manual
  • Mounting bracket
  • Certificate


Features / Technical summary
  • Model: CPK-DR1ME3
  • Series: CPK photoelectric sensors
  • Detection distance: 0–1 m
  • Sensing type: diffuse reflective
  • Output: NPN/PNP, NO/NC
  • Supply: DC 12–24 V, 4-wire DC
  • Response: 500 μs (1000 Hz)
  • Protection: IP65
  • Housing: ABS; lens/window: PMMA; cable: PVC
  • Standard target: white drawing paper 300 × 300 mm
  • Cable length: 2 m
