Polarized retroreflective photoelectric sensor CPK-RMR12MR3rectangularsquaremultibeam
Add to favorites
Compare this product
Characteristics
- Sensing mode
- polarized retroreflective
- Housing
- rectangular, square
- Type of beam
- infrared, red light, multibeam
- Other characteristics
- compact, polarized, high-performance, waterproof, intrinsically safe, IP67
- Applications
- for food industry applications, for logistics, for object detection, for robotics, for gate, for packaging machines, for automatic doors
- Maximum range
Max.: 12 m
(39'04" )Min.: 0.1 m
(0'03" )
Description
1. **Naming Rule**
Detection principle: Polarized retro‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 0.1‑12 m: CPK‑RMR12MR3
‑ Infrared‑light 0.1‑12 m: Not available
2. **Available Part Numbers**
CPK‑RMR12MR3 (Red‑light, 0.1‑12 m)
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑12 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
5. **Main Model Versions**
Red‑light (617 nm) only; infrared‑light version not available; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Power consumption: ≤2 W
‑ Beam pointing angle: ≥1.5°
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.1. **Naming Rule**
Detection principle: Polarized retro‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 0.1‑12 m: CPK‑RMR12MR3
‑ Infrared‑light 0.1‑12 m: Not available
2. **Available Part Numbers**
CPK‑RMR12MR3 (Red‑light, 0.1‑12 m)
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑12 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
5. **Main Model Versions**
Red‑light (617 nm) only; infrared‑light version not available; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Power consumption: ≤2 W
‑ Beam pointing angle: ≥1.5°
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.
Detection principle: Polarized retro‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 0.1‑12 m: CPK‑RMR12MR3
‑ Infrared‑light 0.1‑12 m: Not available
2. **Available Part Numbers**
CPK‑RMR12MR3 (Red‑light, 0.1‑12 m)
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑12 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
5. **Main Model Versions**
Red‑light (617 nm) only; infrared‑light version not available; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Power consumption: ≤2 W
‑ Beam pointing angle: ≥1.5°
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.1. **Naming Rule**
Detection principle: Polarized retro‑reflective; Power supply: AC/DC universal.
Light source: Red LED(617 nm) / Infrared LED(850 nm).
Connection: Cable‑integrated type.
‑ Red‑light 0.1‑12 m: CPK‑RMR12MR3
‑ Infrared‑light 0.1‑12 m: Not available
2. **Available Part Numbers**
CPK‑RMR12MR3 (Red‑light, 0.1‑12 m)
3. **Detection Principle**
Polarized retro‑reflective type. The sensor emits polarized light, which bounces back from a dedicated retro‑reflector. Detection triggers when an object interrupts the light path between sensor and reflector.
4. **Sensing Range**
Sensing distance: 0.1‑12 m.
Indicator: Orange‑action indicator; Green‑stability indicator; No power‑supply indicator.
5. **Main Model Versions**
Red‑light (617 nm) only; infrared‑light version not available; cable‑integrated connection; relay contact output.
6. **Key Features**
‑ Large‑square housing, AC/DC wide‑voltage power input DC24‑240V / AC24‑240V
‑ Strong EMC performance, suitable for harsh electromagnetic environment
‑ Response time: ≤20 ms
‑ Mechanical service life: 50 million operations; Electrical service life: 100 thousand operations
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑40~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Power consumption: ≤2 W
‑ Beam pointing angle: ≥1.5°
7. **Operation Mode**
Light‑ON / Dark‑ON freely selectable.
8. **Output Options**
Relay contact output, contact rating AC250V/3A(cosφ=1), DC5V/10 mA and above.
Catalogs
No catalogs are available for this product.
See all of CHANKO SENSOR‘s catalogsOther CHANKO SENSOR products

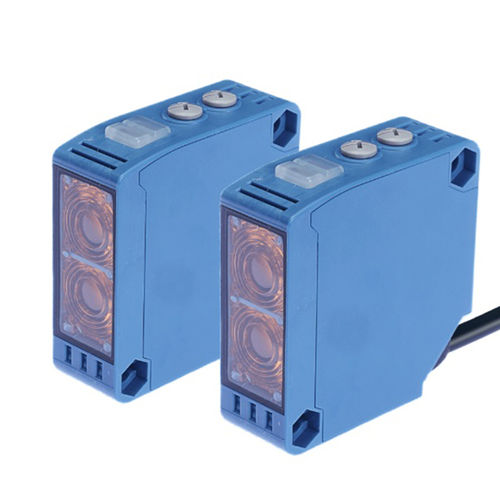

CPK Series Large Square Photoelectric Sensor
