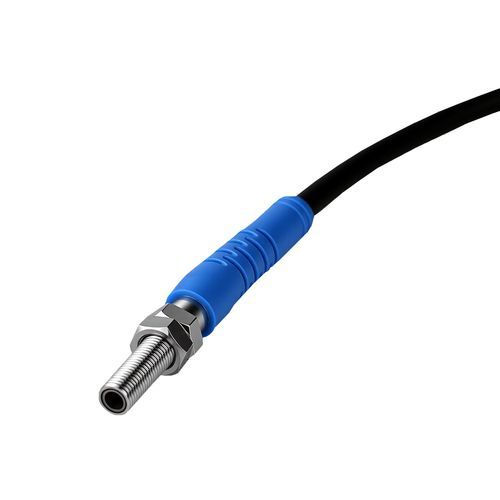

Fiber optic sensor head CX3-DE4L50N1

Product
Laser fibre-optic sensor CX3-DE4L50N1 (CX3 series) — diffuse-reflective laser sensor with M4 threaded straight housing, detection distance 5–50 mm, spot ≈ Φ2 mm, output NPN NO.

Main features

• Model / Series: CX3
• Light source: Laser
• Detection principle: Diffuse reflection
• Housing: M4 threaded, straight type
• Detection distance: 5–50 mm
• Spot diameter: approx. Φ2 mm
• Output: NPN NO (switching)
• Protection rating: IP65
• Cable: Φ3.8 mm PVC, 1.5 m
• Operating temperature: 0–50 °C
• Housing material: stainless steel

Mechanical / electrical parameters

• Supply voltage: DC 12–24 V
• Output type: NPN NO
• Switching mode: Light ON
• Response frequency: 100 Hz
• Signal type: Discrete switching
• Current consumption: < 10 mA
• Circuit protection: Short-circuit and overload protection
• Load current: 120 mA

Recommended applications

• 3C electronics assembly and inspection
• Automated parking systems
• Logistics and warehouse detection

Additional information

• Manufacturer / brand: 长江传感 (Shanghai)
• Datasheets, CAD files and certificates available on request (see '资料下载')
• Contact 长江传感 for quotations, customization options and lead times
