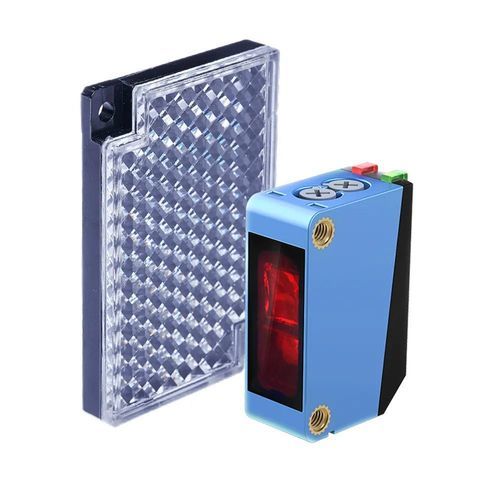

Retroreflective photoelectric sensor CPY-RMR4MP3-A
polarized retroreflectiverectangularsquare

Retroreflective photoelectric sensor - CPY-RMR4MP3-A - CHANKO SENSOR - polarized retroreflective / rectangular / square
Retroreflective photoelectric sensor - CPY-RMR4MP3-A - CHANKO SENSOR - polarized retroreflective / rectangular / square
Retroreflective photoelectric sensor - CPY-RMR4MP3-A - CHANKO SENSOR - polarized retroreflective / rectangular / square - image - 2
Retroreflective photoelectric sensor - CPY-RMR4MP3-A - CHANKO SENSOR - polarized retroreflective / rectangular / square - image - 3
Retroreflective photoelectric sensor - CPY-RMR4MP3-A - CHANKO SENSOR - polarized retroreflective / rectangular / square - image - 4
Add to favorites
Compare this product

Characteristics

Sensing mode
retroreflective, polarized retroreflective
Housing
rectangular, square
Type of beam
red light
Other characteristics
compact, plastic, long-range, waterproof
Applications
for food industry applications, for logistics, for object detection, for automatic doors, for robotics, for packaging machines, for plastics, for small parts
Maximum range

Max.: 4 m
(13'01" )

Min.: 0 m
(0'00" )

Description

Product name
CPY-RMR4MP3-A (CPY series photoelectric sensor)

Key points
  • Detection range: 0–4 m
  • Form factor: compact rectangular housing
  • Sensing principle: polarized mirror-reflection
  • Dimensions: 21 × 12 × 32 mm
  • Output: PNP, NO/NC
  • Supply voltage: DC 12–24 V


Technical specifications
  • Detection distance: 0–4 m
  • Cable length: 0.5 m
  • Detection direction: frontal
  • Switching frequency: 500 Hz
  • Response time: 1 ms
  • Light source: red light
  • Accessories: manual, reflector, mounting bracket, mounting screws, adjustment screwdriver, certificate
  • Beam angle: ≤ 2°
  • Standard test object: opaque object Ø ≥ 75 mm
  • Materials: housing ABS; lens/window PC; cable PVC


Mechanical / Electrical parameters
  • Output type: PNP NO/NC
  • Supply voltage: DC 12–24 V
  • Power connection: 3-wire DC
  • Protection rating: IP65
  • Connection: M12 connector
  • Signal type: switching
  • Operating modes: Light ON / Dark ON
  • Current consumption: < 25 mA
  • Indicator lights: red operation LED, green stability LED
  • Protection: short-circuit protection
  • Residual voltage: < 3 V
  • Load current: < 100 mA (residual voltage < 3 V with 2 m cable)
  • Insulation resistance: > 20 MΩ (DC 500 V insulation tester)
  • Sensitivity adjustment: single-turn potentiometer
  • Shock resistance: 300 m/s², X/Y/Z 10 times
  • Dielectric strength: AC 1000 V 50/60 Hz 1 min (live parts vs. housing)
  • Vibration resistance: 10–55 Hz, 1.5 mm amplitude, X/Y/Z 2 h
  • Weight: approx. 35 g


Operating environment
  • Operating temperature: -25 °C to 55 °C
  • Operating/storage humidity: 35–95% RH (no condensation)
  • Ambient illumination: <= 10000 lx


Characteristics / Technical summary
  • Model: CPY-RMR4MP3-A
  • Series: CPY series photoelectric sensors
  • Detection: 0–4 m, frontal, red light
  • Output: PNP, NO/NC; Light ON / Dark ON
  • Supply: DC 12–24 V, 3-wire DC
  • Protection & connection: IP65, M12 connector, short-circuit protection
  • Response time / Frequency: 1 ms / 500 Hz
  • Size / weight: 21 × 12 × 32 mm, approx. 35 g
  • Materials: housing ABS; lens/window PC; cable PVC
  • Accessories: manual, reflector, mounting bracket and screws, adjustment screwdriver, certificate
  • Environment: -25 °C to 55 °C, 35–95% RH (no condensation), illumination ≤ 10000 lx
