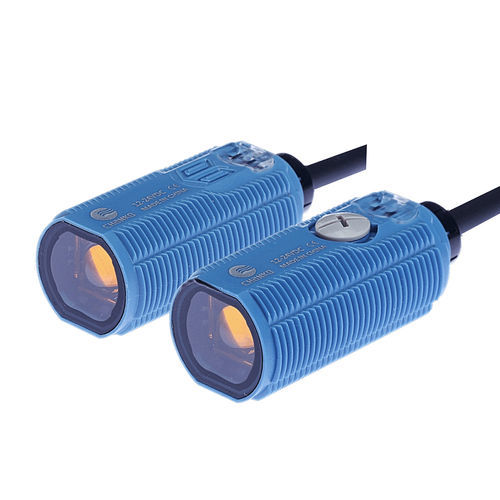

Through-beam sensor photoelectric sensor CPA-TF15MP3through-beamcylindricalinfrared
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam sensor, through-beam
- Housing
- cylindrical
- Type of beam
- infrared
- Other characteristics
- plastic
- Maximum range
Max.: 15 m
(49'02" )Min.: 0 m
(0'00" )
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Accessories
Characteristics / technical specifications
- Type: Through-beam photoelectric sensor
- Model: CPA-TF15MP3
- Detection distance: 0–15 m
- Housing: M18 cylindrical
- Output: PNP NO/NC (switch)
- Supply voltage: DC 12–24 V
Technical specifications
- Detection distance: 0–15 m
- Housing: M18 cylindrical
- Detection principle: Through-beam (infrared)
- Overall dimensions: M18
- Cable length: 2 m
- Sensing direction: Front
- Response frequency: 1000 Hz
- Response time: 500 μs
- Light source: Infrared
- Accessories: User manual, M18 nuts ×4, inspection certificate
- Beam angle: ≤ 2°
- Standard target: Opaque object ≥ Φ7 mm
- Materials: Housing/nuts ABS; lens/display window PMMA; knob POM; cable PVC
Mechanical / electrical parameters
- Output: PNP NO/NC
- Supply voltage: DC 12–24 V
- Power wiring: Four-wire DC
- Protection rating: IP65
- Connection: Molded cable
- Signal type: Switching
- Operating modes: Light ON / Dark ON
- Current consumption: ≤ 40 mA (transmitter 25 mA)
- Indicators: Operation (orange), Stability (green)
- Protection: Short-circuit protection
- Residual voltage: ≤ 3 V (load supply ≤ 30 V)
- Load current: ≤ 100 mA (residual voltage ≤ 3 V, load supply ≤ 30 V)
- Insulation resistance: ≥ 20 MΩ (DC 500 V megger)
- Sensitivity adjustment: Single-turn knob
- Shock resistance: 300 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (charged parts vs. housing)
- Vibration: 10–55 Hz, 1.5 mm amplitude, X/Y/Z 2 h
- Weight: ≈ 94 g
Operating environment
- Operating temperature: -25 °C to 55 °C
- Humidity: 35–95% RH (no condensation) for operation/storage
- Ambient illumination: ≤ 10000 lx
Accessories
- User manual
- M18 nuts ×4
- Inspection certificate
Characteristics / technical specifications
- Model: CPA-TF15MP3
- Series: CPA photoelectric sensors
- Detection distance: 0–15 m
- Housing: M18 cylindrical
- Detection mode: Through-beam
- Output: PNP NO/NC (switch)
- Supply: DC 12–24 V (four-wire DC)
- Cable length: 2 m
- Response frequency/time: 1000 Hz / 500 μs
- Light source: Infrared
- Protection rating: IP65
- Operating temperature: -25 °C to 55 °C
- Weight: ≈ 94 g
- Materials: Housing/nuts ABS; lens PMMA; knob POM; cable PVC
