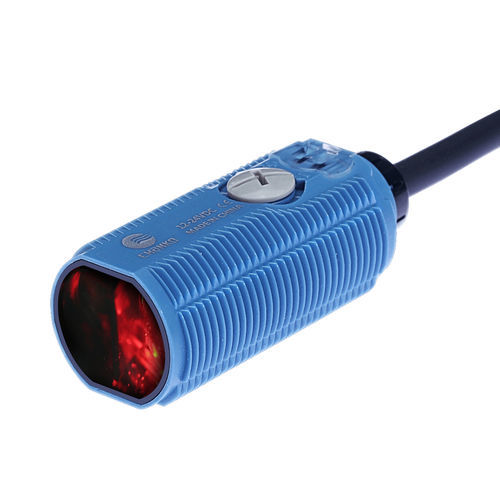

Diffuse reflective sensor photoelectric sensor CPY-DF1MP3-A

diffuse reflectivediffusecylindrical

1. **Naming Rule (digit 4‑digit 11 definition)**
Detection principle: Diffuse‑reflective
Light source: Red LED 617 nm / Infrared LED 850 nm
Output type: NPN / PNP
Form: Cable / M12‑A connector
‑ Red‑light 1 mCPA‑DR1MN3(NPN‑cable), CPA‑DR1MP3(PNP‑cable), CPA‑DR1MN3‑A(NPN‑M12), CPA‑DR1MP3‑A(PNP‑M12)
‑ Infrared‑light 1 mCPA‑DF1MN3(NPN‑cable), CPA‑DF1MP3(PNP‑cable), CPA‑DF1MN3‑A(NPN‑M12), CPA‑DF1MP3‑A(PNP‑M12)
2. **Available Part Numbers**
CPA‑DR1MN3, CPA‑DR1MP3, CPA‑DR1MN3‑A, CPA‑DR1MP3‑A
CPA‑DF1MN3, CPA‑DF1MP3, CPA‑DF1MN3‑A, CPA‑DF1MP3‑A
3. **Detection Principle**
Diffuse‑reflective type with integrated transmitter and receiver inside M18 cylindrical housing. It emits light beam and detects objects by receiving light reflected from target surface.
4. **Sensing Range**
Sensing distance: 1 m
Standard detecting object: white drawing paper (300×300 mm)
Hysteresis: ≤20% of sensing distance
5. **Main Model Versions**
Red‑light(617 nm) or infrared‑light(850 nm) optional; cable or M12 connector output; NPN / PNP output selectable.
6. **Key Features**
‑ M18 cylindrical housing
‑ Response time: 1 ms
‑ Single‑turn potentiometer for sensitivity adjustment
‑ Supply voltage: DC12‑24V (DC10‑30V permissible)
‑ Protection circuits: reverse‑power‑supply, surge absorption, output short‑circuit protection
‑ Indicators: orange action indicator, green stability indicator
‑ Operating temperature:‑25~+55℃Storage temperature:‑25~+70℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON selectable by wiring selection.
8. **Output Options**
NPN or PNP transistor open‑collector output.1. **Naming Rule (digit 4‑digit 11 definition)**
Detection principle: Diffuse‑reflective
Light source: Red LED 617 nm / Infrared LED 850 nm
Output type: NPN / PNP
Form: Cable / M12‑A connector
‑ Red‑light 1 mCPA‑DR1MN3(NPN‑cable), CPA‑DR1MP3(PNP‑cable), CPA‑DR1MN3‑A(NPN‑M12), CPA‑DR1MP3‑A(PNP‑M12)
‑ Infrared‑light 1 mCPA‑DF1MN3(NPN‑cable), CPA‑DF1MP3(PNP‑cable), CPA‑DF1MN3‑A(NPN‑M12), CPA‑DF1MP3‑A(PNP‑M12)
2. **Available Part Numbers**
CPA‑DR1MN3, CPA‑DR1MP3, CPA‑DR1MN3‑A, CPA‑DR1MP3‑A
CPA‑DF1MN3, CPA‑DF1MP3, CPA‑DF1MN3‑A, CPA‑DF1MP3‑A
3. **Detection Principle**
Diffuse‑reflective type with integrated transmitter and receiver inside M18 cylindrical housing. It emits light beam and detects objects by receiving light reflected from target surface.
4. **Sensing Range**
Sensing distance: 1 m
Standard detecting object: white drawing paper (300×300 mm)
Hysteresis: ≤20% of sensing distance
5. **Main Model Versions**
Red‑light(617 nm) or infrared‑light(850 nm) optional; cable or M12 connector output; NPN / PNP output selectable.
6. **Key Features**
‑ M18 cylindrical housing
‑ Response time: 1 ms
‑ Single‑turn potentiometer for sensitivity adjustment
‑ Supply voltage: DC12‑24V (DC10‑30V permissible)
‑ Protection circuits: reverse‑power‑supply, surge absorption, output short‑circuit protection
‑ Indicators: orange action indicator, green stability indicator
‑ Operating temperature:‑25~+55℃Storage temperature:‑25~+70℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON selectable by wiring selection.
8. **Output Options**
NPN or PNP transistor open‑collector output.
