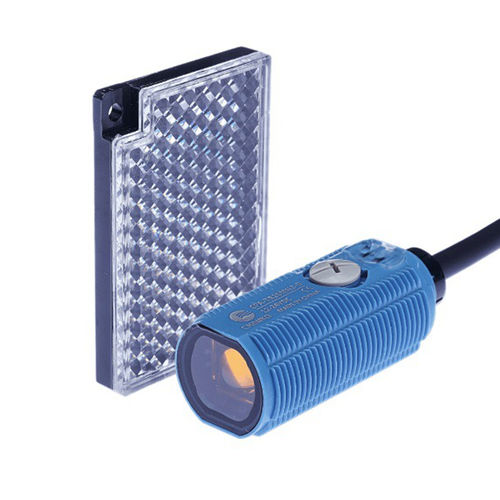

Polarized retroreflective photoelectric sensor CPA-RME8MP3-P

cylindricallaserlong-range

1. **Naming Rule**
Detection principle: Polarized retro‑reflective, laser light source (655 nm).
Output: NPN / PNP; Connection: Cable / M12‑A connector.
‑ 12 m series: CPA‑RME12; suffix‑P stands for long‑distance enhanced variant.
2. **Available Part Numbers**
Cable type: CPA‑RME12MN3, CPA‑RME12MP3, CPA‑RME12MN3‑P, CPA‑RME12MP3‑P
M12 connector type: CPA‑RME12MN3‑A, CPA‑RME12MP3‑A, CPA‑RME12MN3‑A/P, CPA‑RME12MP3‑A/P
3. **Detection Principle**
Polarized retro‑reflective laser type. The sensor emits laser beam toward reflector, detects objects by receiving reflected laser signal. Suitable for glossy metal surfaces and high‑reflective fabrics.
4. **Sensing Range**
Sensing distance: 12 m;‑P enhanced version reaches 16 m.
Standard target: ≥Φ3 mm opaque object (655 nm light transmittance ≤10%).
Minimum reflector mounting distance ≥300 mm, minimum installation gap ≥45 mm.
5. **Main Model Versions**
Standard / long‑distance enhanced (‑P) optional; cable or M12 connector available; NPN / PNP output selectable.
6. **Key Features**
‑ M18 cylindrical housing, visible 655 nm laser source
‑ Response time:1 ms; Response frequency: ≤500 Hz
‑ Multiple built‑in protection circuits
‑ Supply current: ≤25 mA
‑ Indicator: green‑stable output, red‑switching output
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+65 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
‑ Average service life: 1700000 hours @ +25℃
7. **Operation Mode**
Light‑ON / Dark‑ON selectable through wiring.
8. **Output Options**
NPN or PNP transistor open‑collector output, maximum load current 100 mA.1. **Naming Rule**
