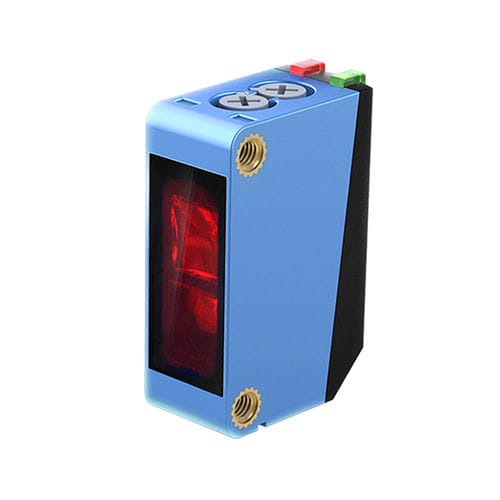

Diffuse reflective photoelectric sensor CPY-DF300P3-Acylindricalmultibeaminfrared
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective
- Housing
- cylindrical
- Type of beam
- infrared, red light, multibeam
- Other characteristics
- waterproof, waterproof, with calibration
- Applications
- for food industry applications, for logistics, for object detection, for robotics, for gate, for packaging machines, for automatic doors
- Maximum range
Min.: 0 mm
(0 in)Max.: 300 mm
(11.8 in)
Description
1. **Naming Rule**
Detection principle: Diffuse‑reflective
Light source: Red LED 617 nm / Infrared LED 850 nm
Output: NPN / PNP; Connection: Cable / M12‑A connector
‑ Red‑light: 100 mm(CPA‑DR100), 300 mm(CPA‑DR300)
‑ Infrared‑light: 100 mm(CPA‑DF100), 300 mm(CPA‑DF300)
2. **Available Part Numbers**
‑ 100 mm Red‑light: CPA‑DR100N3, CPA‑DR100P3, CPA‑DR100N3‑A, CPA‑DR100P3‑A
‑ 300 mm Red‑light: CPA‑DR300N3, CPA‑DR300P3, CPA‑DR300N3‑A, CPA‑DR300P3‑A
‑ 100 mm Infrared‑light: CPA‑DF100N3, CPA‑DF100P3, CPA‑DF100N3‑A, CPA‑DF100P3‑A
‑ 300 mm Infrared‑light: CPA‑DF300N3, CPA‑DF300P3, CPA‑DF300N3‑A, CPA‑DF300P3‑A
3. **Detection Principle**
Diffuse‑reflective type with integrated transmitter and receiver in M18 cylindrical housing. It detects objects by receiving light reflected from target surfaces.
4. **Sensing Range**
Sensing distance: 100 mm / 300 mm
Standard detecting object: white drawing paper (300×300 mm)
Hysteresis: ≤20 % of sensing distance
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable or M12 connector output; NPN / PNP output selectable.
6. **Key Features**
‑ M18 cylindrical housing
‑ Response time: 1 ms
‑ Single‑turn potentiometer for sensitivity adjustment
‑ Supply voltage: DC12‑24 V (DC10‑30 V permissible)
‑ Protection circuits: reverse‑power‑supply, surge absorption, output short‑circuit protection
‑ Indicators: orange action LED, green stability LED
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON selectable via wiring.
8. **Output Options**
NPN or PNP transistor open‑collector output.1. **Naming Rule**
Detection principle: Diffuse‑reflective
Light source: Red LED 617 nm / Infrared LED 850 nm
Output: NPN / PNP; Connection: Cable / M12‑A connector
‑ Red‑light: 100 mm(CPA‑DR100), 300 mm(CPA‑DR300)
‑ Infrared‑light: 100 mm(CPA‑DF100), 300 mm(CPA‑DF300)
2. **Available Part Numbers**
‑ 100 mm Red‑light: CPA‑DR100N3, CPA‑DR100P3, CPA‑DR100N3‑A, CPA‑DR100P3‑A
‑ 300 mm Red‑light: CPA‑DR300N3, CPA‑DR300P3, CPA‑DR300N3‑A, CPA‑DR300P3‑A
‑ 100 mm Infrared‑light: CPA‑DF100N3, CPA‑DF100P3, CPA‑DF100N3‑A, CPA‑DF100P3‑A
‑ 300 mm Infrared‑light: CPA‑DF300N3, CPA‑DF300P3, CPA‑DF300N3‑A, CPA‑DF300P3‑A
3. **Detection Principle**
Diffuse‑reflective type with integrated transmitter and receiver in M18 cylindrical housing. It detects objects by receiving light reflected from target surfaces.
4. **Sensing Range**
Sensing distance: 100 mm / 300 mm
Standard detecting object: white drawing paper (300×300 mm)
Hysteresis: ≤20 % of sensing distance
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable or M12 connector output; NPN / PNP output selectable.
6. **Key Features**
‑ M18 cylindrical housing
‑ Response time: 1 ms
‑ Single‑turn potentiometer for sensitivity adjustment
‑ Supply voltage: DC12‑24 V (DC10‑30 V permissible)
‑ Protection circuits: reverse‑power‑supply, surge absorption, output short‑circuit protection
‑ Indicators: orange action LED, green stability LED
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON selectable via wiring.
8. **Output Options**
NPN or PNP transistor open‑collector output.
Detection principle: Diffuse‑reflective
Light source: Red LED 617 nm / Infrared LED 850 nm
Output: NPN / PNP; Connection: Cable / M12‑A connector
‑ Red‑light: 100 mm(CPA‑DR100), 300 mm(CPA‑DR300)
‑ Infrared‑light: 100 mm(CPA‑DF100), 300 mm(CPA‑DF300)
2. **Available Part Numbers**
‑ 100 mm Red‑light: CPA‑DR100N3, CPA‑DR100P3, CPA‑DR100N3‑A, CPA‑DR100P3‑A
‑ 300 mm Red‑light: CPA‑DR300N3, CPA‑DR300P3, CPA‑DR300N3‑A, CPA‑DR300P3‑A
‑ 100 mm Infrared‑light: CPA‑DF100N3, CPA‑DF100P3, CPA‑DF100N3‑A, CPA‑DF100P3‑A
‑ 300 mm Infrared‑light: CPA‑DF300N3, CPA‑DF300P3, CPA‑DF300N3‑A, CPA‑DF300P3‑A
3. **Detection Principle**
Diffuse‑reflective type with integrated transmitter and receiver in M18 cylindrical housing. It detects objects by receiving light reflected from target surfaces.
4. **Sensing Range**
Sensing distance: 100 mm / 300 mm
Standard detecting object: white drawing paper (300×300 mm)
Hysteresis: ≤20 % of sensing distance
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable or M12 connector output; NPN / PNP output selectable.
6. **Key Features**
‑ M18 cylindrical housing
‑ Response time: 1 ms
‑ Single‑turn potentiometer for sensitivity adjustment
‑ Supply voltage: DC12‑24 V (DC10‑30 V permissible)
‑ Protection circuits: reverse‑power‑supply, surge absorption, output short‑circuit protection
‑ Indicators: orange action LED, green stability LED
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON selectable via wiring.
8. **Output Options**
NPN or PNP transistor open‑collector output.1. **Naming Rule**
Detection principle: Diffuse‑reflective
Light source: Red LED 617 nm / Infrared LED 850 nm
Output: NPN / PNP; Connection: Cable / M12‑A connector
‑ Red‑light: 100 mm(CPA‑DR100), 300 mm(CPA‑DR300)
‑ Infrared‑light: 100 mm(CPA‑DF100), 300 mm(CPA‑DF300)
2. **Available Part Numbers**
‑ 100 mm Red‑light: CPA‑DR100N3, CPA‑DR100P3, CPA‑DR100N3‑A, CPA‑DR100P3‑A
‑ 300 mm Red‑light: CPA‑DR300N3, CPA‑DR300P3, CPA‑DR300N3‑A, CPA‑DR300P3‑A
‑ 100 mm Infrared‑light: CPA‑DF100N3, CPA‑DF100P3, CPA‑DF100N3‑A, CPA‑DF100P3‑A
‑ 300 mm Infrared‑light: CPA‑DF300N3, CPA‑DF300P3, CPA‑DF300N3‑A, CPA‑DF300P3‑A
3. **Detection Principle**
Diffuse‑reflective type with integrated transmitter and receiver in M18 cylindrical housing. It detects objects by receiving light reflected from target surfaces.
4. **Sensing Range**
Sensing distance: 100 mm / 300 mm
Standard detecting object: white drawing paper (300×300 mm)
Hysteresis: ≤20 % of sensing distance
5. **Main Model Versions**
Red‑light (617 nm) or infrared‑light (850 nm) optional; cable or M12 connector output; NPN / PNP output selectable.
6. **Key Features**
‑ M18 cylindrical housing
‑ Response time: 1 ms
‑ Single‑turn potentiometer for sensitivity adjustment
‑ Supply voltage: DC12‑24 V (DC10‑30 V permissible)
‑ Protection circuits: reverse‑power‑supply, surge absorption, output short‑circuit protection
‑ Indicators: orange action LED, green stability LED
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+70 ℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 customizable)
7. **Operation Mode**
Light‑ON / Dark‑ON selectable via wiring.
8. **Output Options**
NPN or PNP transistor open‑collector output.
