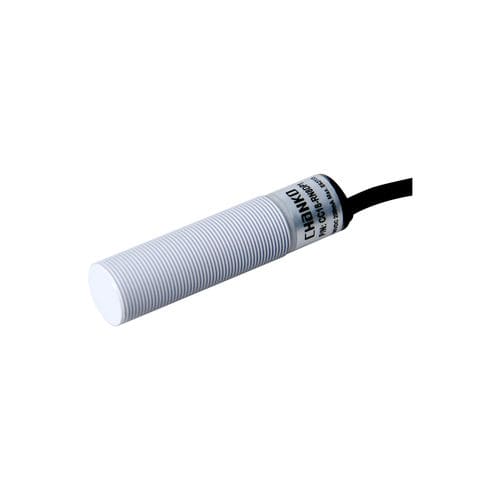

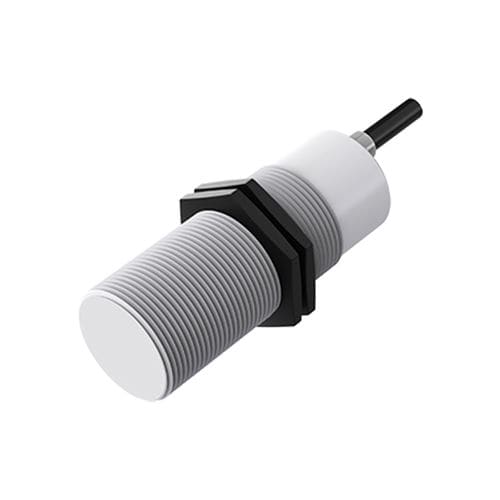

Capacitive proximity sensor CC30-RF20DN1cylindricalM30digital
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, digital, NPN
- Supply voltage
- 24VDC, 12VDC
- Mounting
- flush
- Material
- plastic, PVC
- Other characteristics
- 3-wire
- Measuring range
Min.: 0 mm
(0 in)Max.: 2 mm
(0.08 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Technical specifications
Mechanical/Electrical parameters
Operating environment
Characteristics / technical summary
- Product type: Standard
- Detection distance: 20 mm
- Housing shape: Cylindrical
- Detection principle: Capacitive
- Housing size: M30
- Output: NPN NO
Technical specifications
- Product type: Standard
- Detection distance: 20 mm
- Housing shape: Cylindrical
- Detection principle: Capacitive
- Housing size: M30
- Cable length: 2 m
- Detection direction: Front
- Response frequency: 100 Hz
- Response time: 5 ms
- Detectable target: Non-metallic bodies
- Accessories: Nuts ×2, inspection certificate
- Hysteresis: ≤15% of detection distance
- Standard test object: Iron 60×60×1 mm
- Temperature drift: Within ±10% of detection distance over -25 to +70°C (reference +23°C)
- Materials: Housing PBT; cable PVC
Mechanical/Electrical parameters
- Output: NPN NO
- Supply voltage: DC 12–24 V
- Power supply wiring: DC three-wire
- Ingress protection: IP67
- Connection: Molded cable
- Signal type: Digital switch
- Operating mode: Normally open (NO)
- Mounting: Flush/mounted
- Current consumption: <10 mA
- Indicator: Red output indicator
- Protection circuits: Short-circuit protection, surge protection
- Voltage influence: Within ±1% detection distance change for ±15% supply variation
- Load current: ≤200 mA
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm X/Y/Z 2 h
- Weight: Approx. 197 g
Operating environment
- Ambient operating temperature: -25 to +70 °C
Characteristics / technical summary
- Model: CC30-RF20DN1
- Series: CC30 series proximity sensors
- Detection distance: 20 mm
- Detection principle: Capacitive
- Housing size: M30
- Cable length: 2 m
- Output: NPN NO
- Supply: DC 12–24 V, three-wire DC
- Ingress protection: IP67
- Response frequency/time: 100 Hz / 5 ms
- Suitable targets: Non-metallic bodies (standard test object: iron 60×60×1 mm)
- Materials: Housing PBT; cable PVC
- Accessories: Nuts ×2, inspection certificate
