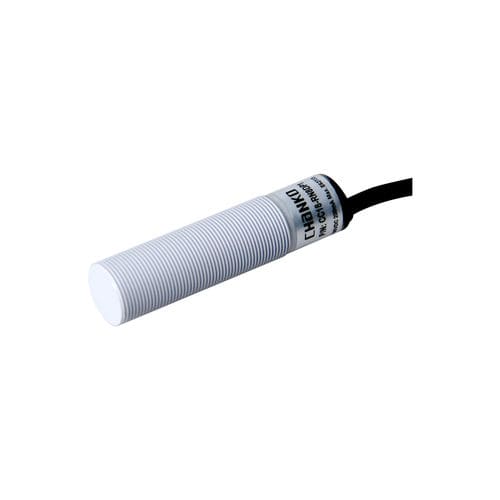

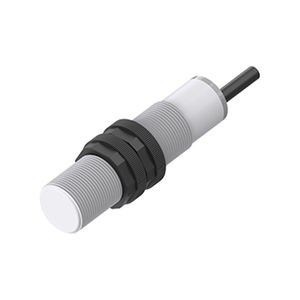

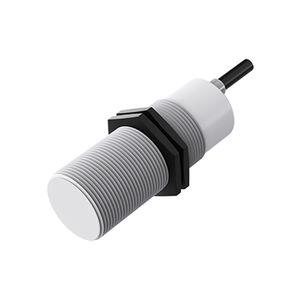

Capacitive proximity sensor CC30-RN30DN2cylindricalM30with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, NPN
- Supply voltage
- 24VDC, 12VDC
- Mounting
- non-flush
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
Max.: 30 mm
(1.18 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product
Product overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Drawings / Control output / Outline
Recommended applications
Characteristics / Technical specifications
- Model: CC30-RN30DN2
- Series: CC30 series capacitive proximity sensors
Product overview
- Type: Standard
- Detection distance: 30 mm
- Housing shape: Cylindrical
- Detection principle: Capacitive
- Thread/size: M30
- Output: NPN NC (normally closed)
- Cable length: 2 m (molded cable)
- Detection direction: Frontal
Technical specifications
- Response frequency: 100 Hz
- Response time: 5 ms
- Detectable objects: Non-metallic
- Accessories: 2 nuts, certificate
- Hysteresis: ≤15% of detection distance
- Standard test target: Iron 90 × 90 × 1 mm
- Temperature drift: Within ±10% of detection distance over -25 to +70°C (reference +23°C)
- Materials: Housing PBT; cable PVC
Mechanical / Electrical parameters
- Output type: NPN NC
- Supply voltage: DC 12–24 V
- Power supply: 3-wire DC
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Switch output
- Operating mode: Normally closed
- Mounting: Non-flush (non-embedded)
- Current consumption: ≤10 mA
- Indicator: Red output indicator LED
- Protection circuits: Short-circuit protection, surge protection
- Voltage influence: Within ±1% detection change for ±15% supply variation
- Load current: ≤200 mA
- Insulation resistance: ≥50 MΩ (measured with DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm, X/Y/Z 2 h
- Weight: Approx. 195 g
Operating environment
- Operating temperature: -25 to 70°C
Drawings / Control output / Outline
- Product page includes capacitive molded-cable output diagram and cylindrical outline drawings (images are schematic of electrical and mechanical details)
Recommended applications
- 3C electronics industry
- Automated parking systems
- Logistics and warehousing
Characteristics / Technical specifications
- Model: CC30-RN30DN2
- Type: Standard
- Detection distance: 30 mm
- Detection principle: Capacitive
- Supply voltage: DC 12–24 V
- Output: NPN NC (normally closed)
- Protection rating: IP67
- Operating temperature: -25 to 70°C
- Materials: Housing PBT, Cable PVC
