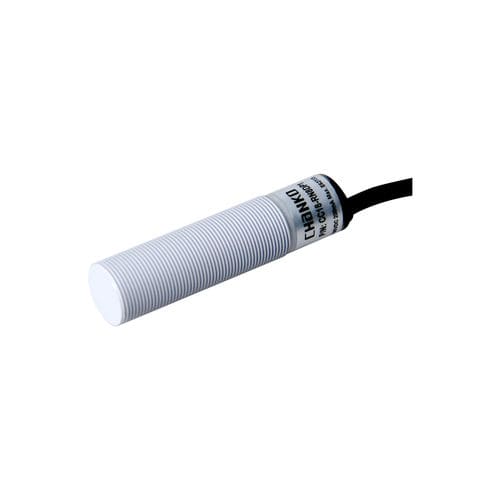

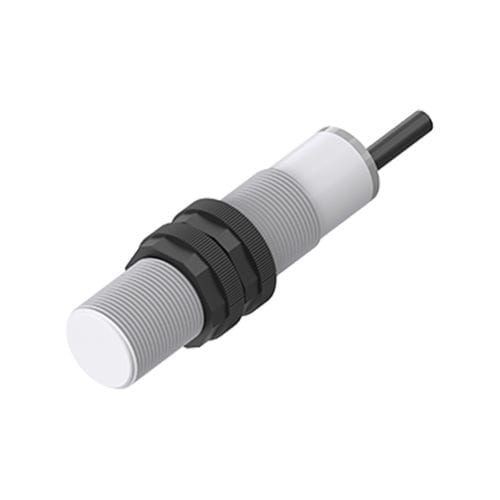

Capacitive proximity sensor CC30-RF20DN2cylindricalM30with semiconductor output
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, NPN, with semiconductor output
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- plastic, PVC
- Other characteristics
- non-contact, 3-wire
- Measuring range
Min.: 0 mm
(0 in)Max.: 20 mm
(0.79 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Technical specifications
Operating environment
Accessories
Features / technical highlights
- Series/Name: CC30 series capacitive proximity sensors, model CC30-RF20DN2
- Type: Standard
- Sensing distance: 20 mm
- Housing/shape: Cylindrical, size M30
- Sensing principle: Capacitive
- Output: NPN NC (normally closed)
- Cable length: 2 m (molded cable)
- Sensing direction: Front
- Response frequency: 100 Hz
- Response time: 5 ms
- Detectable target: Non-metal objects (standard test target: iron 60×60×1 mm)
- Accessories: 2 nuts, certificate
- Materials: Housing PBT; cable PVC
Technical specifications
- Output type: NPN NC
- Supply voltage: DC 12–24 V
- Power supply: DC three-wire
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Switching
- Operation mode: Normally closed
- Mounting: Flush
- Current consumption: below 10 mA
- Indicator: Red output LED
- Protection: Short-circuit protection, power surge protection
- Voltage effect: Within ±15% of rated supply, sensing distance change within ±1%
- Load current: below 200 mA
- Insulation resistance: >50 MΩ (measured with DC 500 V megohmmeter) between live parts and housing
- Shock resistance: 500 m/s, 3 times in X, Y, Z directions
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h in X, Y, Z directions
- Weight: approx. 197 g
Operating environment
- Operating temperature: -25 to 70 °C (temperature drift: within ±10% of sensing distance over -25 to +70 °C compared to +23 °C)
Accessories
- Included: 2 nuts, certificate
Features / technical highlights
- Model: CC30-RF20DN2 (CC30 series)
- Sensing distance: 20 mm
- Housing size: M30 cylindrical
- Sensing principle: Capacitive
- Output: NPN normally closed, switching output
- Protection rating: IP67, sealed for humid/dusty environments
- Power supply: DC 12–24 V, three-wire DC
- Cable: Molded cable, 2 m length
- Response: 100 Hz / 5 ms
- Materials: Housing PBT, cable PVC
