Capacitive proximity sensor CC18-RN15DN1
cylindricalM30with switching function

Capacitive proximity sensor - CC18-RN15DN1 - CHANKO SENSOR - cylindrical / M30 / with switching function

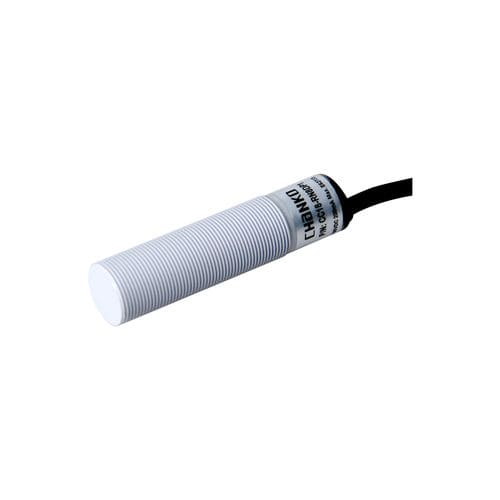

Capacitive proximity sensor - CC18-RN15DN1 - CHANKO SENSOR - cylindrical / M30 / with switching function

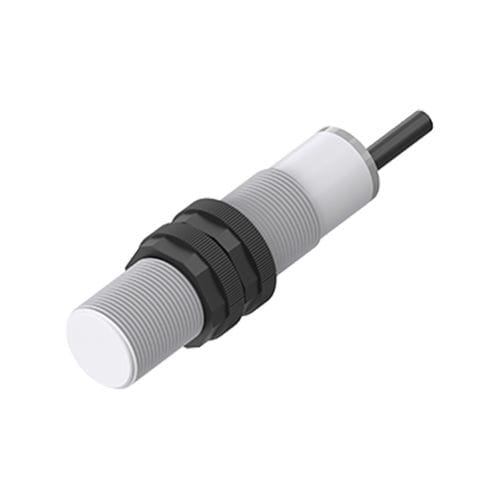

Capacitive proximity sensor - CC18-RN15DN1 - CHANKO SENSOR - cylindrical / M30 / with switching function - image - 2
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Characteristics

Technology
capacitive
Shape
cylindrical
Diameter
M30
Output signal
PNP, with switching function
Electrical connection
built-in transmitter
Supply voltage
DC, 24VDC, 12VDC
Mounting
flush
Material
plastic, PVC
Protection level
IP67
Applications
industrial
Other characteristics
3-wire
Measuring range

Min.: 0 mm
(0 in)

Max.: 20 mm
(0.79 in)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 70 °C
(158 °F)

Description

Product
  • Type: Standard
  • Sensing distance: 20 mm
  • Housing: Cylindrical, M30
  • Sensing principle: Capacitive
  • Output: PNP NC (normally closed)
  • Cable length: 2 m


Technical specifications
  • Type: Standard
  • Sensing distance: 20 mm
  • Sensing principle: Capacitive
  • Response frequency: 100 Hz
  • Response time: 5 ms
  • Target: Non-metal (standard test object: iron 60 × 60 × 1 mm)
  • Hysteresis: ≤15% of sensing distance
  • Temperature drift: Within ±10% over -25 to +70 °C (reference +23 °C)
  • Materials: Housing PBT, Cable PVC
  • Accessories: Nuts ×2, Conformity certificate


Mechanical / Electrical parameters
  • Output: PNP NC
  • Supply voltage: DC 12–24 V
  • Wiring: 3-wire DC
  • Protection class: IP67
  • Connection: Molded cable
  • Signal type: Switching
  • Operating mode: Normally closed
  • Mounting: Flush/embedded
  • Current consumption: < 10 mA
  • Indicator: Red output indicator
  • Protection: Short-circuit and surge protection
  • Voltage influence: Within ±1% change in sensing distance for ±15% supply variation
  • Max load current: < 200 mA
  • Insulation resistance: > 50 MΩ (DC 500 V)
  • Shock resistance: 500 m/s², 3 times on X, Y, Z
  • Dielectric strength: AC 1000 V 50/60 Hz 1 min (live parts to housing)
  • Vibration: 10–55 Hz, double amplitude 1.5 mm, 2 h each axis
  • Weight: approx. 197 g


Operating environment
  • Operating temperature: -25 to +70 °C


Model / Series
  • Model: CC30-RF20DP2
  • Series: CC30 capacitive proximity sensors
  • Application: Sensing non-metallic targets in industrial environments
