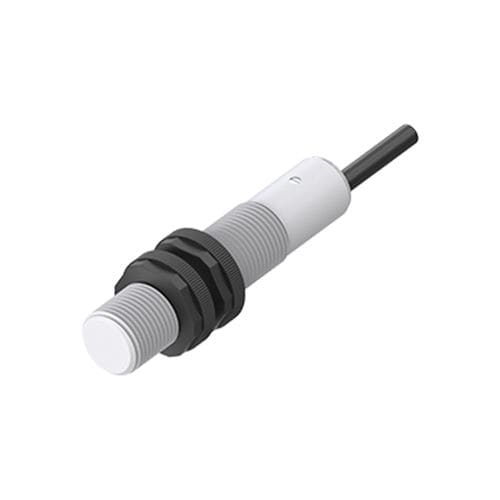

Capacitive proximity sensor CC12-RN6DN1cylindricalM30PNP
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- PNP
- Supply voltage
- 24VDC, 12VDC
- Protection level
- IP67
- Measuring range
Max.: 30 mm
(1.18 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
1. Series: CC series cylindrical capacitive proximity sensor
2. Representative models: CC12-RN6DN1, CC12-RN6DN2, CC12-RN6DP1, CC12-RN6DP2
3. Measuring Principle: Capacitive sensing, can detect metal & non-metal materials
4. **Sensing Distance: 6mm**
5. **Detection Direction: Front sensing**
6. Size & Mounting: M12 cylindrical housing, Non-flush (non-embedded) mounting
7. Setting Distance: 0~4.2mm
8. Output Options: DC 3-wire (NPN NO/NC, PNP NO/NC)
9. Response Frequency: 100Hz
10. Housing & Protection: PBT housing, PVC cable, IP67 protection, multiple protection circuits, passed full EMC test
11. Standard Detection Object: Iron 18*18*1mm
12. Electrical Spec: DC12~24V±10%; consumption current ≤10mA, output current ≤200mA; reverse polarity, short-circuit & surge protection
13. Connection: Forming cable
14. Naming Rule: CC = Chanko Capacitive sensor; 12 = M12 size; R = cylindrical thread; N = Non-flush non-embedded mounting; 6 = 6mm sensing distance; D = DC12-24V; N=NPN, P=PNP; 1=NO normally open, 2=NC normally closed
2. Representative models: CC12-RN6DN1, CC12-RN6DN2, CC12-RN6DP1, CC12-RN6DP2
3. Measuring Principle: Capacitive sensing, can detect metal & non-metal materials
4. **Sensing Distance: 6mm**
5. **Detection Direction: Front sensing**
6. Size & Mounting: M12 cylindrical housing, Non-flush (non-embedded) mounting
7. Setting Distance: 0~4.2mm
8. Output Options: DC 3-wire (NPN NO/NC, PNP NO/NC)
9. Response Frequency: 100Hz
10. Housing & Protection: PBT housing, PVC cable, IP67 protection, multiple protection circuits, passed full EMC test
11. Standard Detection Object: Iron 18*18*1mm
12. Electrical Spec: DC12~24V±10%; consumption current ≤10mA, output current ≤200mA; reverse polarity, short-circuit & surge protection
13. Connection: Forming cable
14. Naming Rule: CC = Chanko Capacitive sensor; 12 = M12 size; R = cylindrical thread; N = Non-flush non-embedded mounting; 6 = 6mm sensing distance; D = DC12-24V; N=NPN, P=PNP; 1=NO normally open, 2=NC normally closed
