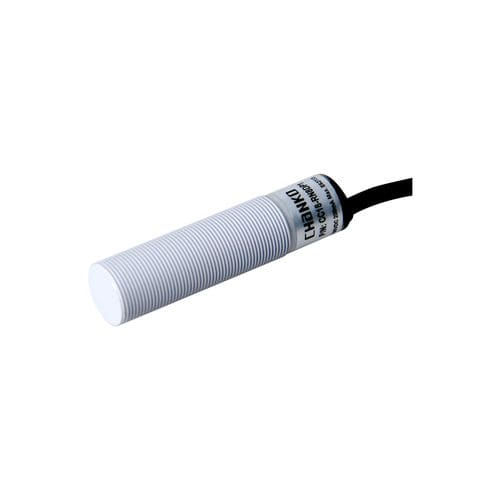

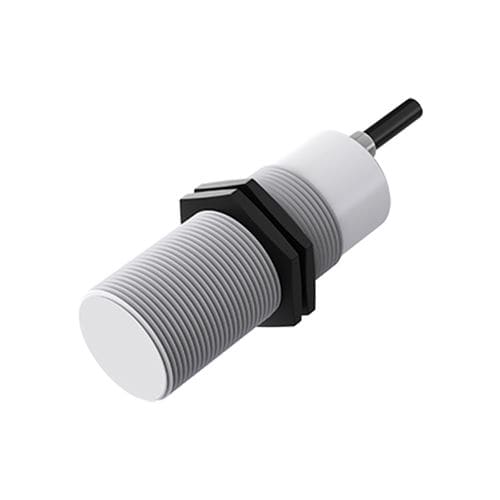

Capacitive proximity sensor CC30-RF20DP1cylindricalM30with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- PNP, with switching function
- Supply voltage
- 24VDC, 12VDC
- Mounting
- flush
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
Max.: 20 mm
(0.79 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Additional information
- Model: CC30-RF20DP1
- Series: CC30 series capacitive proximity sensors
- Type: Standard
- Form factor: cylindrical, M30
- Sensing principle: capacitive
- Cable length: 2 m (molded cable)
- Sensing direction: frontal
- Output: PNP normally open (PNP NO)
Technical specifications
- Sensing distance: 20 mm
- Operating frequency: 100 Hz
- Response time: 5 ms
- Detectable objects: non-metallic (standard test object: iron 60×60×1 mm)
- Hysteresis: <15% of sensing distance
- Temperature drift: within ±10% over -25–+70 °C (reference +23 °C)
- Materials: housing PBT; cable PVC
- Accessories: nuts ×2, inspection certificate
Mechanical / Electrical parameters
- Output type: PNP NO
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Operating mode: normally open
- Mounting: flush/embedded
- Current consumption: <10 mA
- Indicator: red output LED
- Protection: short-circuit and surge protection
- Voltage influence: within ±1% sensing distance change for ±15% supply variation
- Load current: <200 mA
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 times per axis
- Dielectric strength: AC 1000 V 50/60 Hz 1 min
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h per axis
- Weight: approx. 197 g
Operating environment
- Operating temperature: -25 ~ +70 °C
Additional information
- Wiring: capacitive sensor molded cable wiring diagram provided
- Dimensions: cylindrical M30 dimensional drawing provided
- Recommended applications: 3C electronics, automated parking systems, logistics & warehousing
