- CHARLES AUSTEN PUMPS LTD / BLUEDIAMOND PUMPS INC

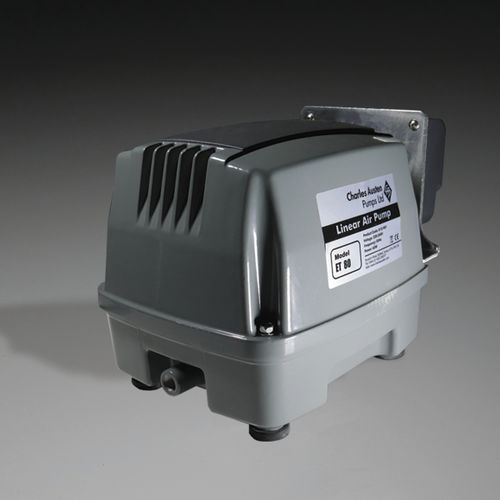

Diaphragm pump ETA series airelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial, medical
- Applications
- sewage
- Voltage
- 110 V, 380 V
- Other characteristics
- low-pressure, line, oil-free
- Flow
Min.: 40 l/min
(10.56688 us gal/min)Max.: 300 l/min
(79.25162 us gal/min)- Pressure
0.12 bar, 0.2 bar
(1.74 psi, 2.901 psi)- Power
Min.: 30 W
(0.04 hp)Max.: 275 W
(0.37 hp)- Length
Min.: 220 mm
(9 in)Max.: 348 mm
(14 in)- Width
Min.: 155 mm
(6.1 in)Max.: 230 mm
(9.06 in)- Height
Min.: 140 mm
(5.51 in)Max.: 219 mm
(8.62 in)- Weight
Min.: 4.3 kg
(9.48 lb)Max.: 18.5 kg
(40.79 lb)
Description
range of air pumps ensures that there is plenty of water movement in wastewater applications; this boosts oxygen levels in the water, allowing aerobic bacteria to decompose. When used in medical applications, the ETA series provides a high low at low pressure. Enviro ETA pumps come with a built in alarm which detects low pressure in the airline.
Enviro air pump with built in alarm which detects low pressure in the airline.
Integral high sounding buzzer and bright LED warning signals.
Also available with 230V output wire for connection to an alarm panel or beacon.
Supplied with a rubber elbow for easy fitting.
Ideal for large scale sewage treatment systems or pond aeration.
Fit for both indoor and outdoor use due to its weatherproof design.
Compatible with our service kits to help extend the life of the pump.
Catalogs
ETA SERIES
2 Pages
