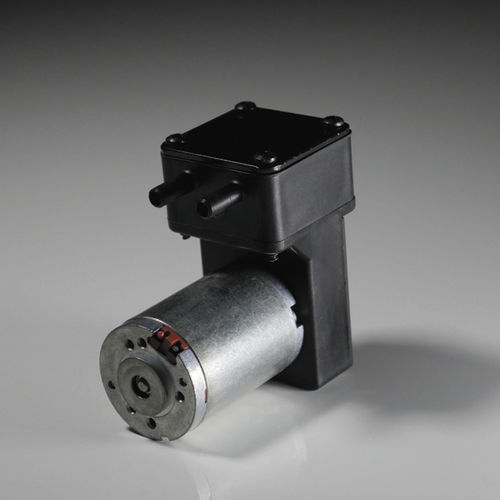

Diaphragm pump DL2
waterelectricstationary

Diaphragm pump - DL2 - CHARLES AUSTEN PUMPS LTD / BLUEDIAMOND PUMPS INC - water / electric / stationary
Diaphragm pump - DL2 - CHARLES AUSTEN PUMPS LTD / BLUEDIAMOND PUMPS INC - water / electric / stationary
Diaphragm pump - DL2 - CHARLES AUSTEN PUMPS LTD / BLUEDIAMOND PUMPS INC - water / electric / stationary - image - 2
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial
Voltage
24 V, 12 V, 110 V, 380 V
Other characteristics
compact, rotary
Flow

1.6 l/min
(0.42268 us gal/min)

Head

20 m
(65'07" )

Length

100 mm
(4 in)

Width

42 mm
(1.65 in)

Height

100 mm
(3.94 in)

Weight

0.8 kg
(1.76 lb)

Description

• Clean oil free vacuum and pressure source in a very quiet, compact unit. • Lightweight components, slim line design and low operating current - ideal for applications where space is at a premium. • Models con be upgraded with an optional variety of materials resistant to a wide range of corrosive gases and vapours • Optional brushless motor designed for continuous duty, low maintenance applications • Models available for use with AC or DC supply. APPLICATIONS • LIQUID DISPENSING • SOLAR HEATING • CONDENSATE REMOVAL • SAMPLE TRANSFER • VENDING • PRINTING • CHEMICAL SAMPLING
