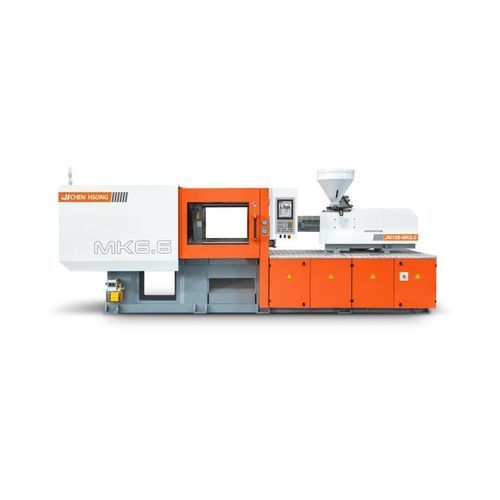

Horizontal injection molding machine JM-MK6.6 series

hydraulicfor polycarbonatefor PC

Major advantages of MK6.6 Euroseries

• Machine intelligence and ergonomics Optimised control and operator access for industrial production.
• Proven toggle design Motion-control profile tuned for high speed and stability.
• High-strength platens Patented construction reduces platen deformation for uniform clamping.
• High-precision injection unit Linear guide rails for injection ensure stability and repeatability.

Toggle design from decades of experience
Experienced mechanical engineers refined the toggle kinematics using software simulation and real-world validation. The result is reduced internal friction and shocks, uniform load distribution across tie-bars and maintained platen parallelism to minimise flash and wear. The system delivers smooth, vibration-free motion, improved power efficiency and extended component life.

Integration of toggle and hydraulics
Hydraulic circuit optimised via fluid-dynamics simulation and fine tuning to provide fast, precise and repeatable clamping and injection control suitable for high-throughput production.

Strong platens for consistent part quality
Patented low-deformation platens with reinforced centre deliver more uniform clamping force on the mould, protecting tooling and improving finished-part dimensional stability.

Controls

• B&R 10.4" professional controller Integrated automation for high-speed applications and cell-level management.
• User-friendly multi-touch HMI Clear process visualisation and intuitive operation.
• CAN-Bus I/O and customised control Fast response and reliability, controller tailored for MK6.6 series.

Production case example

• Part example — LED lighting part Shot weight: 121 g; Cavities: 8; Resin: PC; Cycle time: 32.4 s.
• Mould Weight: 350 kg; Dimensions: 400 mm x 400 mm x 300 mm.

Performance highlights
Improved dry-cycle and injection speeds versus comparable examples. Production simulation indicators: up to 11 months per year, 21 hours per day; energy consumption example range 0.17–0.35 kW·h; estimated 8 million shots in 10 years and example energy saving ~€29,400 over 10 years (simulation-based figures).

Clamping (table)
Machine Model | Clamping Force (Max) (t) | Opening Stroke (mm) | Space Between Tie Bars (HxV) (mm) | Max. Mould Thickness (mm) | Min. Mould Thickness (mm) | Maximum Daylight (mm) | Ejector Force (t) | Ejector Stroke (mm) | Center Ring Diameter (mm)
Unit | t | mm | mm | mm | mm | mm | t | mm | mm
JM88-MK6 | 88 | 330 | 360 x 360 | 380 | 130 | 720 | 2.8 | 100 | 125
JM128-MK6 | 128 | 370 | 410 x 410 | 450 | 145 | 830 | 4.2 | 120 | 125
JM168-MK6 | 168 | 420 | 460 x 460 | 520 | 160 | 970 | 4.2 | 140 | 125
JM208-MK6 | 208 | 490 | 530 x 530 | 550 | 180 | 1060 | 6.7 | 150 | 160
JM258-MK6 | 268 | 530 | 580 x 580 | 610 | 195 | 1140 | 7.7 | 170 | 160
JM328-MK6 | 328 | 600 | 660 x 660 | 660 | 220 | 1340 | 7.7 | 170 | 160
JM398-MK6 | 408 | 670 | 730 x 730 | 730 | 250 | 1450 | 11.1 | 220 | 160
JM468-MK6 | 488 | 770 | 810 x 810 | 810 | 275 | 1670 | 11.1 | 220 | 200
JM568-MK6 | 568 | 835 | 855 x 855 | 850 | 330 | 1750 | 16.6 | 250 | 200
JM668-MK6 | 658 | 920 | 900 x 900 | 920 | 350 | 1840 | 18.2 | 265 | 200
Specifications are subject to change without notice.

Injection unit (table)
Model ID | Swept Volume (cm³) | Swept Volume (cm³) | Swept Volume (cm³) | Injection Weight (PS) (g) | Injection Weight (PS) (g) | Injection Weight (PS) (g) | Screw Diameter (mm) | Screw Diameter (mm) | Screw Diameter (mm) | Screw L/D Ratio | Screw L/D Ratio | Screw L/D Ratio
Unit | cm³ | cm³ | cm³ | g | g | g | mm | mm | mm | L/D | L/D | L/D
JM88-MK6 | 135 | 183 | 237 | 123 | 166 | 216 | 31 | 36 | 41 | 24.4 | 21.0 | 18.4
JM128-MK6 | 208 | 270 | 340 | 189 | 246 | 309 | 36 | 41 | 46 | 23.9 | 21.0 | 18.7
JM168-MK6 | 303 | 382 | 488 | 276 | 347 | 444 | 41 | 46 | 52 | 23.6 | 21.0 | 18.6
JM208-MK6 | 431 | 551 | 734 | 393 | 502 | 668 | 46 | 52 | 60 | 23.7 | 21.0 | 18.2
JM258-MK6 | 636 | 847 | 1057 | 579 | 771 | 962 | 52 | 60 | 67 | 24.2 | 21.0 | 18.8
JM328-MK6 | 947 | 1180 | 1479 | 861 | 1074 | 1346 | 60 | 67 | 75 | 23.5 | 21.0 | 18.8
JM398-MK6 | 1321 | 1655 | 2027 | 1202 | 1506 | 1845 | 67 | 75 | 83 | 23.5 | 21.0 | 19.0
JM468-MK6 | 1832 | 2244 | 2638 | 1667 | 2042 | 2401 | 75 | 83 | 90 | 23.2 | 21.0 | 19.4
JM568-MK6 | 1832 | 2244 | 2638 | 1667 | 2042 | 2401 | 75 | 83 | 90 | 23.2 | 21.0 | 19.4
JM668-MK6 | 2433 | 2861 | 3392 | 2214 | 2603 | 3087 | 83 | 90 | 98 | 23.9 | 22.0 | 20.2
Specifications are subject to change without notice.

Technical specifications

• Series: MK6.6 Euroseries
• Brand: Chen Hsong
• Controller: B&R 10.4" professional controller (customised for MK6.6)
• Control features: Multi-touch HMI; CAN-Bus I/O; integrated automation
• Main strengths: advanced toggle design, optimised motion-control, patented high-strength platens, high-precision injection unit with linear guide rails
• Available models and clamping forces: JM88-MK6 to JM668-MK6 (see Clamping table)
• Injection unit data: multiple screw diameters and L/D ratios per model (see Injection unit table)
• Example production case: LED lighting part — shot weight 121 g; 8 cavities; cycle 32.4 s
• Downloadable brochure available in product documents (spec sheet / brochure PDF)
