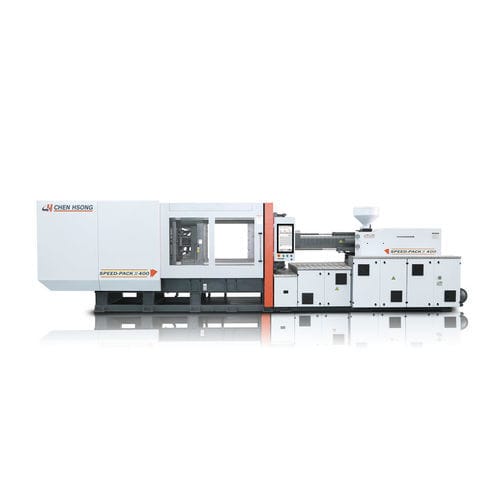

Horizontal injection molding machine SPEED series

hydraulicfor PETfor PS

Overview
The Speed & Speed Pack II series uses Precision HydraulicsTM (Japanese-developed) together with advanced control and simulation software to minimise pressure loss and optimise the hydraulic circuit for high-speed injection moulding.

Precision injection
High-precision linear transducers are fitted on clamping, injection and ejector axes to enable low-pressure mould protection. Balanced dual hydraulic cylinders and linear guide rails reduce friction and provide stable, high-precision injection control.

Clamping
Available clamping range: SPEED series 128–468 t; SPEED-PACK series 260–470 t.

Speed Pack series highlights

• High precision: linear transducers for clamping; balanced dual cylinders and linear guides for low friction and repeatability.
• High-efficiency servo motors: reduce energy consumption (up to 80%) while supporting precise, low-noise operation.
• Oil-less graphite bushings: self-lubricating bushings that eliminate the need for lubricating oil — reduced contamination and maintenance.
• Optimised injection unit: standard injection units configured for high-speed operation with higher injection speed and pressure.

European specifications

• EUROMAP compatibility: platen hole and ejector patterns according to Euromap where applicable (patterns may vary with platen design).
• Standard European components: hydraulic valves (Bosch Rexroth or Vickers), hydraulic pump (Eckerle), linear transducers (Gefran or Novotechnik), electrical components (Siemens, Schneider, Telemecanique, PILZ).

Controls & controller

• B&R closed-loop controller for high-speed applications and production cell management.
• User-friendly 15.6" multi-touch HMI for clear process visualization.
• CAN-Bus I/O for fast response; isolated and expandable I/O for special options and automation.
• Data saving and reporting: unlimited mould data via thumb drive; advanced production, settings and alarm logs.
• Industry 4.0 ready: cloud service compatibility and OPC-UA interface available.

Representative tables — Clamping (SPEED series)
Machine Model | Clamping Force (Max, t) | Opening Stroke (mm) | Maximum Daylight (mm) | Space Between Tie Bars (HxV, mm) | Max. Mould Thickness (mm) | Min. Mould Thickness (mm) | Ejector Stroke (mm) | Ejector Force (t) | Flange Position (mm)
SPEED 128 | 128 | 380 | 830 | 410 x 410 | 450 | 150 | 120 | 3,4 | 125
SPEED 168 | 168 | 450 | 970 | 470 x 470 | 520 | 170 | 140 | 4,2 | 125
SPEED 208 | 208 | 510 | 1.060 | 530 x 530 | 550 | 180 | 150 | 6,7 | 160
SPEED 258 | 258 | 560 | 1.140 | 580 x 580 | 580 | 190 | 150 | 6,7 | 160
SPEED 328 | 328 | 660 | 1.340 | 680 x 680 | 680 | 225 | 180 | 11,1 | 160
SPEED 398 | 398 | 720 | 1.450 | 730 x 730 | 730 | 250 | 215 | 11,1 | 160
SPEED 468 | 468 | 820 | 1.670 | 830 x 830 | 850 | 300 | 220 | 16,6 | 200

Representative tables — Clamping (SPEED-PACK series)
Machine Model | Clamping Force (Max, t) | Opening Stroke (mm) | Maximum Daylight (mm) | Space Between Tie Bars (HxV, mm) | Max. Mould Thickness (mm) | Min. Mould Thickness (mm) | Ejector Stroke (mm) | Ejector Force (t) | Flange Position (mm)
SPEED-PACK 260 | 260 | 560 | 1.140 | 580 x 580 | 580 | 190 | 150 | 6,7 | 160
SPEED-PACK 330 | 330 | 660 | 1.340 | 670 x 670 | 680 | 225 | 130 | 11,1 | 160
SPEED-PACK 400 | 400 | 720 | 1.450 | 720 x 720 | 730 | 250 | 165 | 11,1 | 160
SPEED-PACK 470 | 470 | 820 | 1.670 | 830 x 830 | 850 | 300 | 170 | 16,6 | 170

Representative tables — Injection Unit (SPEED series)
Machine Model | Swept Volume (cm3) | Swept Volume (cm3) second col | Injection Weight (PS, g) | Injection Weight (PS, g) second col | Screw Diameter (mm) | Screw Diameter (mm) second col | Screw L/D Ratio | Injection Pressure (Max, kgf/cm2) | Injection Rate (PS, g/s) | Screw Rotation Speed (Max, rpm) | Screw Stroke (mm) | Nozzle contact force (t) | Nozzle Stroke (mm)
Unit | 136 / 183 | 124 / 167 | 31 | 36 | L/D 24,4 / 21,0 | 2.548 / 1.890 | 226 / 305 | 300 rpm | 180 mm | 4,2 t | 275 mm
SPEED 128 | 136 / 183 | 124 / 167 | 31 / 36 | 24,4 | 21,0 | 2.548 | 1.890 | 226 | 305 | 300 | 180 | 4,2 | 275
SPEED 168 | 209 / 271 | 190 / 246 | 36 / 41 | 23,9 | 21,0 | 2.451 | 1.890 | 305 | 396 | 300 | 205 | 4,2 | 290
SPEED 208 | 304 / 382 | 276 / 348 | 41 / 46 | 23,6 | 21,0 | 2.118 | 1.683 | 396 | 499 | 300 | 230 | 6,2 | 330
SPEED 258 | 304 / 382 | 276 / 348 | 41 / 46 | 23,6 | 21,0 | 2.119 | 1.683 | 396 | 499 | 300 | 230 | 6,2 | 330
SPEED 328 | 432 / 552 | 552 / 393 | 46 / 52 | 23,7 | 21,0 | 2.419 | 1.893 | 499 | 637 | 300 | 260 | 6,2 | 380
SPEED 398 | 947 / 1.181 | 1.181 / 862 | 60 / 67 | 23,5 | 21,0 | 1.867 | 1.497 | 848 | 1.058 | 300 | 335 | 9,1 | 440
SPEED 468 | 947 / 1.181 | 1.181 / 862 | 60 / 67 | 23,5 | 21,0 | 1.867 | 1.497 | 848 | 1.058 | 300 | 335 | 9,1 | 440

Representative tables — Injection Unit (SPEED-PACK series)
Selected values: SPEED-PACK injection tables follow SPEED series values with specific model variations in swept volume, screw diameter, L/D ratio, injection speed/rate and stroke as listed above.

Notes
Specifications subject to change without notice.

Technical specifications

• Technology: Precision HydraulicsTM (Japanese-developed).
• Clamping range: SPEED 128–468 t; SPEED-PACK 260–470 t.
• Injection unit: model-dependent swept volumes, weights, screw diameters, L/D ratios, pressures and rates (see tables).
• Drive/efficiency: high-efficiency servo motors (up to 80% energy reduction).
• Bushings: oil-less graphite self-lubricating bushings.
• Controls: B&R closed-loop controller; 15.6" multi-touch HMI; CAN-Bus I/O; OPC-UA / Industry 4.0 ready.
• European components: Bosch Rexroth or Vickers valves; Eckerle pump; Gefran or Novotechnik transducers; Siemens/Schneider/Telemecanique/PILZ electrical parts.
• Options: Euromap interfaces, extended mould height, safety bars, electric power doors, IR light guards, automatic/manual lubrication, additional core-pulls/air-blows, valve gate control, Industry 4.0 connectivity, hydraulic bypass/filter, oil pre-heat and other configurable options.
