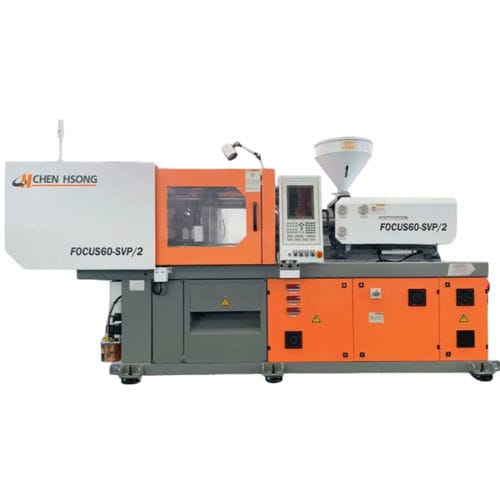

Horizontal injection molding machine FOCUS SVP/2 series

hydraulic

Overview
The FOCUS SVP/2 Series is an energy-saving injection moulding machine family marketed as an energy-saving solution for industrial injection moulding. The series integrates a speed-controlled servomotor driving a fixed internal gear pump with real-time system pressure measurement to deliver reduced energy consumption, high precision, low noise and low inertia.

Inovance Servo Drive System
The Inovance servo drive is purpose-designed for injection moulding machines and provides high performance, accuracy, low noise and simplified maintenance. Machines equipped with this servo drive can achieve up to 80% energy savings.

Energy Saving
The SVP/2 system uses a speed-controlled servomotor to drive a fixed internal gear pump. A pressure sensor measures system pressure in real time and supplies only the required flow according to demand, eliminating unnecessary power consumption. The result is lower energy use, improved control precision, reduced noise and low dynamic inertia.

Clamping

• Clamping force: from 20 to 60 tons (models: 20, 35, 60)

European Specs

• EUROMAP standard: hole pattern and ejector pattern according to Euromap.
• T-slot or other platen patterns available on request.

Note
Hole pattern/ejector pattern may differ from standard due to platen design.

European Components

• Hydraulic valves: Bosch Rexroth or Vickers
• Hydraulic pump: Eckerle
• Linear transducers: Gefran or Novotechnik
• Electrical components: Siemens, Schneider, Telemecanique, PILZ

Clamping - Table
Machine Model | Clamping Force (Max) [t] | Opening Stroke [mm] | Maximum Daylight [mm] | Mould Platen (HxV) [mm] | Space Between Tiebars (HxV) [mm] | Max. Mould Thickness [mm] | Min. Mould Thickness [mm] | Ejector Stroke [mm] | Ejector Force [t]
Unit | t | mm | mm | mm | mm | mm | mm | mm | t
FOCUS 20-H-SVP/2 | 20 | 250 | 400 | 370 x 340 | 250 x 220 | 400 | 150 | 60 | 1.7
FOCUS 35-SVP/2 | 35 | 230 | 530 | 450 x 430 | 280 x 260 | 300 | 80 | 60 | 2.7
FOCUS 60-SVP/2 | 60 | 270 | 600 | 450 x 450 | 310 x 310 | 330 | 100 | 75 | 2.8

Specifications are subject to change without notice.

Injection Unit - Table (Swept Volume / Injection Weight / Screw Diameter / L/D)
Model ID | Swept Volume [cm3] | Injection Weight (PS) [g] | Screw Diameter [mm] | Screw L/D
Unit | cm3 | g | mm | L/D
FOCUS 20-H-SVP/2 | 20 / 25 / 30 | 18 / 22 / 27 | 18 / 20 / 22 | 21 / 19 / 17.5
FOCUS 35-SVP/2 | 43 / 56 / 70 | 39 / 51 / 64 | 22 / 25 / 28 | 23 / 20 / 18
FOCUS 60-SVP/2 | 63 / 80 / 98 | 58 / 72 / 89 | 25 / 28 / 31 | 22 / 20 / 18

Injection Unit - Table (Injection Pressure / Plasticizing Capacity / Screw Speed / Screw Stroke)
Model ID | Injection Pressure (Max) [kgf/cm2] | Plasticizing Capacity (PS) [g/s] | Screw Rotation Speed (Max) [rpm] | Screw Stroke [mm]
Unit | kgf/cm2 | g/s | rpm | mm
FOCUS 20-H-SVP/2 | 2139 / 1732 / 1426 | 2 / 3 / 4.2 | 290 | 80
FOCUS 35-SVP/2 | 2233 / 1732 / 1377 | 3.2 / 4.6 / 6.5 | 230 | 115
FOCUS 60-SVP/2 | 2070 / 1652 / 1346 | 6 / 8.4 / 11.3 | 240 | 130

Specifications are subject to change without notice.

Controls

• B&R controller: integrated automation for high-speed applications and complete production cell management.
• User-friendly touch-screen: 10.4" multi-touch HMI for clear process visualization and operation.
• Intelligent control system: CAN-Bus based I/O for fast response and reliability.
• Flexibility: isolated and expandable I/O for special options and automations.
• Data saving: unlimited mould data storage via USB thumb drive.
• Advanced reports: production, settings, alarm records and operational logs.
• Network ready: ready for cloud-based services and IoT integration.

Options & Others (selected)

• Additional corepullers (up to 6)
• Parallel core movement
• Parallel ejector movement
• Euromap 70 and 70.1 compatibility
• Larger maximum mould height
• Automatic lubrication on mould height adjust
• Bi-metallic screw and barrel; PET/PVC screw features; shut-off nozzle; barrel insulation; parallel plasticizing
• Up to 16-zone integrated hotrunner system (Euromap 14 standard)
• Industry 4.0 and OPC-UA readiness

Technical specifications

• Series name: FOCUS SVP/2 Series
• Clamping force range: 20 t to 60 t (models: 20, 35, 60)
• Opening stroke range: 230 mm – 270 mm (per model)
• Maximum daylight range: 400 mm – 600 mm (per model)
• Mould platen sizes (HxV): 370 x 340 mm up to 450 x 450 mm
• Space between tiebars (HxV): 250 x 220 mm up to 310 x 310 mm
• Ejector stroke / force examples: 60 mm / 1.7 t (20 model); 60 mm / 2.7 t (35 model); 75 mm / 2.8 t (60 model)
• Injection unit swept volumes examples: 20–30 cm³ (20 model), 43–70 cm³ (35 model), 63–98 cm³ (60 model)
• Screw diameters (examples): 18–22 mm (20 model), 22–28 mm (35 model), 25–31 mm (60 model)
• Screw L/D ratios: typical 17.5–23 depending on configuration
• Max screw speed examples: up to 290 rpm (20 model), 230 rpm (35 model), 240 rpm (60 model)
• Control system: B&R controller with CAN-Bus I/O; 10.4" multi-touch HMI
• Energy saving: up to 80% energy reduction claimed with Inovance servo drive
