Horizontal injection molding machine MK6PRO

servo-hydraulicfast-cyclingwith sample recovery

Overview
Built on a philosophy of exceptional stability, high yield and proven reliability, the MK6 Series combines sophisticated industrial design with powerful intelligent control technology and industry-leading performance, ensuring 100% customer satisfaction. The Definitive Benchmark in Injection Molding.

Model example

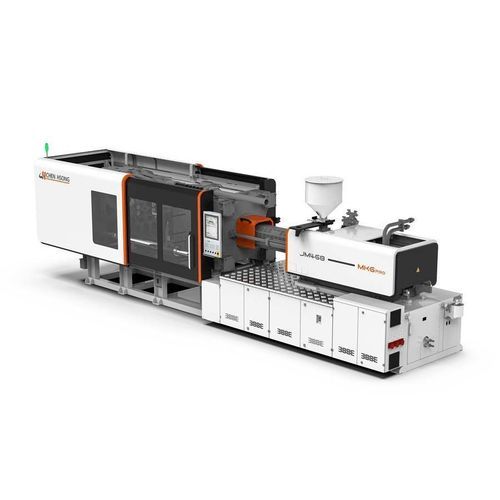

JM468-MK6 PRO (example model within the MK6PRO range).

Control
This machine integrates the advanced KEBA or B&R control system (upon request), ensuring proven reliability and precise operation.

Key benefits

• Exceptional stability and industrial design for high yield and reliability
• eDrive™ (optional): boosts production efficiency 10%–30% by enabling simultaneous plasticising with mold open/close and ejection
• Exceptional part quality: 26% larger power pack for longer holding time and 18% increase in shot weight for wider part-size capability
• Supports simultaneous recovery / parallel plasticising to improve cycle time

Applications

• Aerospace & Defence
• Electronics
• Consumer Electronics
• Cosmetics Packaging
• Automotive

Options / configurable features (selection shown on product page)

• Euromap 70 & 70.1 interface for magnetic mould clamps
• Extended mould height
• Mechanical safety bar
• Electric power door (front) with sensor
• Infrared light guard (front door)
• Automatic lubrication for mold height adjust
• Manual lubrication pump for mold height adjust
• Additional core-pulls
• Additional air-blows
• Parallel core pull movements
• Ejection-on-fly
• Automatic clamping force control
• Bi-metallic screw and barrel
• Shut-off nozzle
• Automatic lubrication of injection unit
• Simultaneous recovery / parallel plasticising
• Manual lubrication pump for injection unit
• Broken thermocouple detection alarm
• Hydraulic/pneumatic valve gates control
• Power sockets 240V1P32A
• Hydraulic by-pass filter
• Hydraulic oil pre-heat
• Industry 4.0 connectivity
• OPC-UA interface

Controller / Smart features
Part of the iChen™ Smart Family: iChen Smart Factory (local shop-floor control and execution), iChen Cloud (multi-site connectivity and analytics), and iChen AI Molder (machine-side assistant to shorten mold trials, stabilise production and improve quality consistency).

Product tables — Clamping (summary)
Item — Unit — JM88 — JM128 — JM168 — JM208 — JM258 — JM328 — JM398 — JM468 — JM568 — JM668
Clamp Force — kN — 880 — 1280 — 1680 — 2080 — 2580 — 3280 — 3980 — 4680 — 5680 — 6880
Clamp Opening Stroke (Max) — mm — 340 — 380 — 450 — 510 — 560 — 660 — 720 — 820 — 870 — 920
Platen Dimensions (HxV) — mm — 540×540 — 600×600 — 680×680 — 760×760 — 840×840 — 970×970 — 1040×1040 — 1160×1160 — 1230×1230 — 1300×1300
Distance Between Tie Bars (HxV) — mm — 360×360 — 410×410 — 470×470 — 530×530 — 580×580 — 680×680 — 730×730 — 830×830 — 860×860 — 920×920
Mold Thickness (Min.–Max) — mm — 125–380 — 150–450 — 170–520 — 180–550 — 190–580 — 225–680 — 250–730 — 300–850 — 350–880 — 380–920
Max. Daylight — mm — 720 — 830 — 970 — 1060 — 1140 — 1340 — 1450 — 1670 — 1750 — 1840
Ejector Force (Max) — kN — 34 — 42 — 42 — 67 — 85 — 111 — 111 — 166 — 166 — 182
Ejector Stroke (Max) — mm — 120 — 120 — 140 — 150 — 150 — 180 — 215 — 220 — 250 — 265
No. of Ejectors — PCS — 1 — 1 — 9 — 9 — 9 — 9 — 9 — 17 — 17 — 17
Locating Ring Diameter — mm — 125 — 125 — 125 — 160 — 160 — 160 — 160 — 200 — 200 — 200

Product tables — Injection Unit (summary)
Item — Unit — JM88 — JM128 — JM168 — JM208 — JM258 — JM328 — JM398 — JM468 — JM568 — JM668
Screw Diameter — mm — 31 — 36 — 41 — 46 — 52 — 60 — 67 — 75 — 83 — 90
Screw L/D — / — 24.4 — 21 — 18.4 — 23.9 — 21 — 18.2 — 23.5 — 21 — 19.4 — 22
Injection Capacity (Calculated) — cm³ — 136 — 183 — 238 — 332 — 533 — 667 — 1025 — 1333 — 1668 — 2030
Injection Shot Weight (Max) — g — 124 — 167 — 216 — 301 — 493 — 867 — 1508 — 1686 — 2403 — 2917
Injection Pressure (Max) — MPa — 254.9 — 189 — 170 — 221 — 212 — 188 — 235 — 239 — 216 — 152
Injection Rate (Max) — cm³/s — 80 — 140 — 170 — 222 — 269 — 302 — 440 — 539 — 656 — 753
Injection Speed (Max) — mm/s — 105 — 105 — 105 — 103 — 103 — 108 — 102 — 100 — 99 — 100
Injection Stroke (Max) — mm — 180 — 205 — 230 — 260 — 260 — 335 — 375 — 415 — 415 — 425
Plasticising Rate (Max) — g/s — 8.8 — 13.8 — 20.3 — 30.9 — 42.8 — 68.7 — 71.3 — 95.9 — 128.9 — 152.7
Screw RPM (Max) — rpm — 245 — 245 — 224 — 200 — 200 — 200 — 190 — 180 — 180 — 170
Nozzle Contact Force (Max) — kN — 42 — 42 — 62 — 62 — 62 — 91 — 111 — 111 — 120 — 120
Nozzle Stroke (Max) — mm — 275 — 290 — 330 — 380 — 380 — 440 — 470 — 540 — 420 — 450

Product tables — Others (summary)
Item — Unit — JM88 — JM128 — JM168 — JM208 — JM258 — JM328 — JM398 — JM468 — JM568 — JM668
System Pressure — MPa — 17.5 (all models)
Motor Power (Rated) — kW — 14 — 17 — 21 — 30 — 30 — 48 — 60 — 72 — 72 — 96
Barrel Heating Power (Max) — kW — 8 — 10.3 — 12.9 — 16.6 — 16.6 — 26 — 31.1 — 35.5 — 35.5 — 35.5
Temperature Control Zones — Zone — 3+1 — 3+1 — 3+1 — 3+1 — 3+1 — 4+1 — 5+1 — 5+1 — 5+1 — 5+1
Machine Dimensions (L×W×H) — m — 4.52×1.17×1.88 — 5.02×1.25×1.94 — 5.53×1.28×2.02 — 6.20×1.48×2.15 — 6.40×1.56×2.24 — 7.73×1.73×2.21 — 8.42×1.94×2.19 — 9.33×2.04×2.26 — 9.30×1.94×2.33 — 9.83×2.02×2.24
Oil Tank Capacity — L — 170 — 220 — 265 — 350 — 350 — 620 — 810 — 920 — 920 — 950
Machine Weight — kg — 3300 — 4000 — 4900 — 6800 — 7800 — 13200 — 16700 — 19800 — 21000 — 23000

Remarks
Specifications are subject to change without notice.
