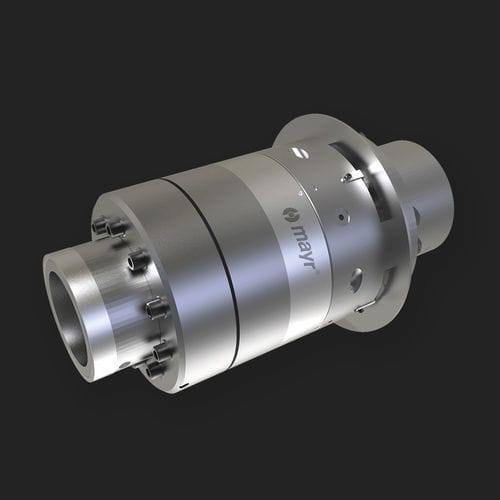

Mechanical torque limiter EAS®-dutytorque

safetyfor extruders

The EAS® -dutytorque is a positive-locking, disengaging safety clutch based on the ball-sink principle. The clutch protects the drive train against impermissibly high torque surges which may occur due to unforeseen blockages. During operation, the set torque is transmitted from the hub via the pressure flange or flange hub to the output. If the set torque is exceeded, the clutch disengages. During disengagement, the pins in the overload elements perform an axial movement (stroke) and remain in the disengaged position. Re-engagement takes place manually. Product features Application ✓ Extruder ✓ Behavior on overload ✓ load-break Design ✓ Positive locking ✓ unlocking Re-engagement ✓ Remotely or manually operated re-engagement Benefits ✓ Free run out ✓ High switch-off and repeat accuracy ✓ High balancing quality ✓ Long service life ✓ High torque range of 6 s 100% of the maximum torque Assembly and maintenance ✓ Low maintenance ✓ Torque adjustment possible ✓ Radial dismountable without moving the motor Temperature ✓ Temperature range from -15° C to 80° C
