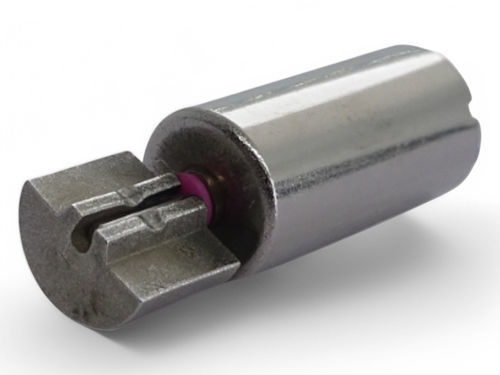

Motor-driven vibrator A6-120-02

electricbattery-poweredrotary

Product

• A6-120-02 (Vibration type) — coreless vibration motor by C.I. TAKIRON Corporation designed for vibration feedback applications.

Overview

• Small-diameter coreless motor intended for vibration applications.
• Compact dimensions and low-voltage operation suitable for battery-powered and miniature devices.
• Outline drawing and CAD data available; product images and a demonstration video are provided.

Product Specifications (table)
Model Name | A6-120-02 (Vibration type)
Outer Diameter [mm] | 6
Length [mm] | 12.0
Applied Voltage [V] | 1.3
Terminal resistance [Ω] | 9.60
No Load Rotation Speed [r/m] | 6,000 (with attached weight)
No Load Current [mA] | -
Startup Current [mA] | -
Startup Torque [mN·m] | 0.125
Startup Efficiency [%] | -
Max Output [W] | -

Downloads / Data available

• Outline drawing (PDF)
• CAD data (ZIP)

Technical specifications

• Model: A6-120-02 (Vibration type)
• Outer diameter: 6 mm
• Length: 12.0 mm
• Rated / Applied voltage: 1.3 V
• Terminal resistance: 9.60 Ω
• No-load rotation speed: 6,000 r/m (measured with attached weight)
• Startup torque: 0.125 mN·m
• No-load current / Startup current / Max output: not specified on page
