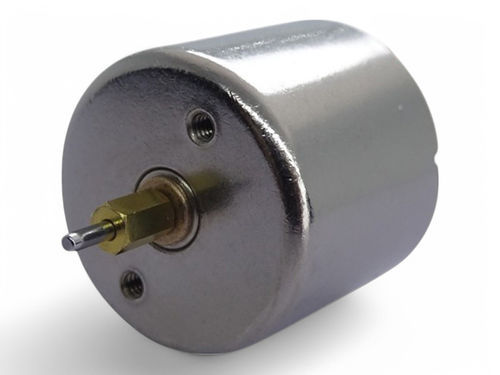

DC motor A17B-41

18 Vcorelessfor medical applications

Overview
The A17B series of coreless motors (outer diameter φ17.4 mm) from C.I. TAKIRON. The series includes multiple sub-models (example: A17B-43) used in small electric devices such as fans for powered masks. Individual model specifications (rotation speed, torque, current, voltage, terminal resistance, efficiency, output) are provided per model. Product pages include gallery images and a product video for representative models.

Product Series - Models and key specs (table)
Model | Outer Diameter [mm] | Length [mm] | Applied Voltage [V] | Terminal resistance [Ω] | Rotation Speed [r/m] | No Load Current [mA] | Startup Current [mA] | Torque [mN･m] | Efficiency [%] | Output [W]
A17B-43 | 17.4 | 15.8 | 3.7 | 1.50 | 16,140 | 32 | 2,467 | 5.26 | 78.5 | 2.22
A17B-42 | 17.4 | 15.8 | 4.8 | 1.70 | 22,100 | 40 | 2,824 | 5.69 | 77.6 | 3.29
A17B-33 | 17.4 | 15.8 | 4.5 | 1.73 | 18,000 | 40 | 2,601 | 6.02 | 76.7 | 2.84
A17B-28 | 17.4 | 15.8 | 4.8 | 3.69 | 14,000 | 20 | 1,300 | 4.13 | 76.7 | 1.51
A17B-19 | 17.4 | 15.8 | 4.5 | 6.4 | 10,300 | 20 | 703 | 2.77 | 69.1 | 0.75
A17B-18 | 17.4 | 15.8 | 4.5 | 4.7 | 12,100 | 20 | 957 | 3.26 | 73.2 | 1.03
A17B-44 | 17.4 | 18.4 | 12.0 | 7.8 | 17,900 | 15 | 1,535 | 9.63 | 81.2 | 4.52
A17B-41 | 17.4 | 18.4 | 18.0 | 13.4 | 22,300 | 16 | 1,340 | 10.1 | 79.3 | 5.89
A17B-40 | 17.4 | 18.4 | 12.0 | 5.19 | 22,000 | 25 | 2,310 | 11.77 | 80.3 | 6.78
A17B-39 | 17.4 | 18.4 | 7.4 | 2.90 | 18,100 | 20 | 2,550 | 9.8 | 83.1 | 4.65
A17B-37 | 17.4 | 18.4 | 5.5 | 2.09 | 17,850 | 25 | 2,630 | 7.59 | 81.5 | 3.55
A17B-35 | 17.4 | 18.4 | 12.0 | 7.00 | 20,200 | 15 | 1,715 | 9.56 | 82.2 | 5.06
A17B-34 | 17.4 | 18.4 | 9.0 | 4.39 | 19,100 | 20 | 2,050 | 9.05 | 81.2 | 4.52
A17B-30 | 17.4 | 18.4 | 4.5 | 1.45 | 14,500 | 20 | 3,100 | 9.07 | 84.6 | 3.44
A17B-29 | 17.4 | 18.4 | 7.4 | 2.35 | 22,000 | 30 | 3,150 | 9.93 | 81.4 | 5.72
A17B-27 | 17.4 | 18.4 | 4.8 | 1.90 | 17,500 | 25 | 2,535 | 6.51 | 81.1 | 2.98
A17B-26 | 17.4 | 18.4 | 4.8 | 2.28 | 15,000 | 25 | 2,110 | 6.30 | 79.4 | 2.47
A17B-25 | 17.4 | 18.4 | 4.5 | 1.26 | 16,350 | 30 | 3,570 | 9.23 | 82.5 | 3.95
A17B-24 | 17.4 | 18.4 | 4.5 | 1.26 | 15,400 | 27 | 3,571 | 9.82 | 83.4 | 3.96
A17B-23 | 17.4 | 18.4 | 4.5 | 1.28 | 18,400 | 35 | 3,516 | 8.05 | 81.0 | 3.88
A17B-22 | 17.4 | 18.4 | 6.0 | 2.15 | 19,000 | 25 | 2,791 | 8.27 | 82.0 | 4.11
A17B-21 | 17.4 | 18.4 | 4.5 | 1.43 | 16,500 | 26 | 3,147 | 8.06 | 82.6 | 3.48
A17B-20 | 17.4 | 18.4 | 4.5 | 3.4 | 10,600 | 16 | 1,324 | 5.24 | 79.2 | 1.45
A17B-17 | 17.4 | 18.4 | 4.5 | .30 | 13,800 | 21 | 1,500 | 4.54 | 77.7 | 1.64
A17B-16 | 17.4 | 18.4 | 4.5 | 2.0 | 15,100 | 25 | 2,250 | 6.26 | 80.0 | 2.48
A17B-11 | 17.4 | 18.4 | 4.5 | 2.8 | 12,000 | 25 | 1,607 | 5.58 | 76.6 | 1.75
A17B-08 | 17.4 | 18.4 | 4.5 | 2.1 | 12,700 | 24 | 2,143 | 7.09 | 80.0 | 2.36
A17B-07 | 17.4 | 18.4 | 4.5 | 2.5 | 14,000 | 25 | 1,800 | 5.37 | 77.8 | 1.97

Customizable Items

• Lead pin
• Lead wire
• Grounding terminal

Notes
Specification values (rotation speed, current, torque, efficiency, output, terminal resistance, applied voltage, dimensions) vary by sub-model. Refer to the model-specific table above for per-model numeric data.

caractéristiques / spécifications techniques

• Series name: A17B series
• Manufacturer: C.I. TAKIRON Corporation.
• Typical outer diameter: 17.4 mm (φ17.4 mm)
• Model lengths: typically 15.8 mm to 18.4 mm depending on model
• Applied voltages: range from ~3.7 V to 18.0 V across models
• Terminal resistance: varies per model (examples: 1.50 Ω to 13.4 Ω shown)
• Rotation speeds: models span approx. 6,000 to 22,300 r/m depending on model and voltage
• Torque range: models from ~2.77 to ~11.77 mN·m (per listed data)
• Efficiency and output: model-dependent (examples given in model table)
• Customizable options available: lead pin, lead wire, grounding terminal
• Media: model pages include product images, thumbnail gallery and model-specific video(s)
