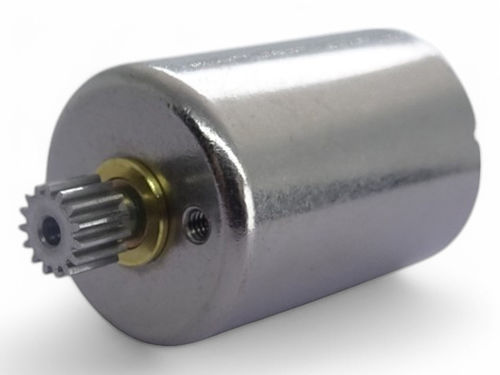

DC motor A16C-07

3 Vcorelessmicro

Product overview
Coreless motor A16C series (outer diameter φ16 mm). The A16C family comprises multiple sub-models for micro and precision applications, including safety devices (example: A16C-06 used in gas detectors). Outline drawings, CAD files and detailed specifications are available per model on the manufacturer's product pages.

Product series - key models (selected data)
Model | Outer Diameter [mm] | Length [mm] | Applied Voltage [V] | Terminal resistance [Ω] | No-load Speed [r/min] | No-load Current [mA] | Startup Current [mA] | Max Torque [mN·m] | Efficiency [%] | Output [W]
A16C-17 | 16 | 23.7 | 6.0 | 2.53 | 12,400 | 18 | 2,372 | 10.8 | 83.3 | 3.5
A16C-18 | 16 | 23.7 | 12.0 | 12.2 | 11,500 | 15 | 984 | 9.5 | 76.8 | 2.86
A16C-16 | 16 | 23.7 | 12.0 | 7.0 | 18,450 | 30 | 1,714 | 10.3 | 75.3 | 4.97
A16C-15 | 16 | 23.7 | 6.0 | 25.2 | 3,220 | 5 | 238 | 4.06 | 73.1 | 0.34
A16C-11 | 16 | 23.7 | 3.0 | 5.35 | 4,600 | 10 | 561 | 3.37 | 75.1 | 0.41
A16C-09 | 16 | 23.7 | 6.0 | 6.25 | 7,300 | 15 | 960 | 7.3 | 76.6 | 1.4
A16C-07 | 16 | 23.7 | 3.0 | 3.4 | 5,500 | 10 | 882 | 4.49 | 79.8 | 0.65
A16C-06 | 16 | 23.7 | 6.0 | 9.1 | 6,200 | 5 | 659 | 6.0 | 83.3 | 0.97
A16C-04 | 16 | 23.7 | 6.0 | 10.7 | 6,200 | 5 | 561 | 5.09 | 82.0 | 0.83
A16C-01 | 16 | 23.7 | 6.0 | 12.0 | 7,100 | 8 | 500 | 3.91 | 76.3 | 0.73
A16C-10 | 16 | 23.7 | 24.0 | 11.30 | 20,600 | 45 | 2,124 | 22.64 | 73.0 | 12.21

Customizable items

• Gear head
• Lead pin
• Lead wire
• Grounding terminal

Characteristics / technical specifications

• Series: A16C (coreless motors, outer diameter φ16 mm)
• Typical body length: 23.7 mm (varies by sub-model)
• Applied voltage: model-dependent (examples: 3.0 V, 6.0 V, 12.0 V, 24.0 V)
• Terminal resistance: model-dependent (approx. 2.53 Ω to 25.2 Ω across series)
• No-load speed: model-dependent (examples range ≈ 3,220 to 20,600 r/min)
• No-load and startup currents: model-dependent (see table for per-model values)
• Max torque, efficiency and output power: model-dependent (see table; outputs observed from ~0.34 W up to ~12.21 W)
• Typical applications: small precision devices and safety equipment (e.g. gas detectors), micro-motor assemblies
• Available resources: outline drawings, CAD data and product specification sheets available per sub-model
