DC motor A12B-36
12 Vcoreless

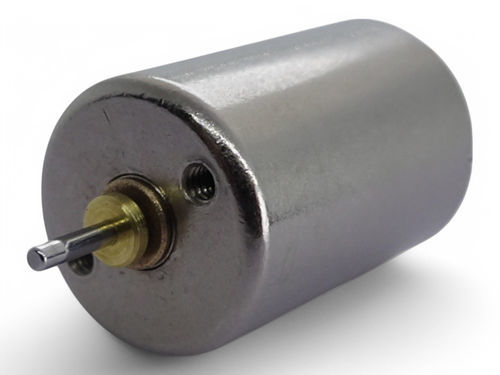

DC motor - A12B-36 - C.I. Takiron - 12 V / coreless
DC motor - A12B-36 - C.I. Takiron - 12 V / coreless
DC motor - A12B-36 - C.I. Takiron - 12 V / coreless - image - 2
DC motor - A12B-36 - C.I. Takiron - 12 V / coreless - image - 3
Add to favorites
Compare this product
Go to the C.I. Takiron website for more information

Characteristics

Type
DC
Voltage
12 V
Configuration
coreless
Power

0.27 W
(0 hp)

Intensity

4 mA, 98 mA

Torque

0.00101 Nm
(0.000745 ft.lb)

Rotational speed

10,240 rpm
(64,339.8175 rad.min-1)

Diameter

12 mm
(0.47 in)

Description

Overview
  • C.I. TAKIRON Corporation A12B series coreless motors (outer diameter φ12 mm). The series page lists multiple A12B submodels with detailed electrical and mechanical specifications and downloadable resources (outline drawings, CAD data) where provided.
  • Specifications provided per submodel include outer diameter, length, applied voltage, terminal resistance, no-load speed/current, startup current/torque, efficiency and output.


Models and key specifications (columns: Model | Outer Diameter [mm] | Length [mm] | Applied Voltage [V] | Terminal resistance [Ω] | No-load speed [r/min] | No-load current [mA] | Startup current [mA] | Startup torque [mN·m] | Efficiency [%] | Output [W])
  • A12B-24 | 12 | 15.5 | 4.5 | 4.1 | 23800 | 45 | 1100 | 1.83 | 63.6 | 1.14
  • A12B-37 | 12 | 18.1 | 9.0 | 65.2 | 8860 | 5 | 138 | 1.24 | 65.6 | 0.29
  • A12B-36 | 12 | 18.1 | 12.0 | 122.4 | 10240 | 4 | 98 | 1.01 | 63.7 | 0.27
  • A12B-35 | 12 | 18.1 | 3.0 | 24.0 | 5100 | 8 | 125 | 0.62 | 55.8 | 0.08
  • A12B-33 | 12 | 18.1 | 3.0 | 40.0 | 3600 | 5 | 75 | 0.52 | 55.0 | 0.05
  • A12B-32 | 12 | 18.1 | 4.5 | 2.4 | 19250 | 35 | 1870 | 4.02 | 74.5 | 2.03
  • A12B-27 | 12 | 18.1 | 3.0 | 10.3 | 7750 | 12 | 291 | 0.99 | 63.5 | 0.20


Customizable Items
  • Gear head
  • Lead pin
  • Lead wire
  • Grounding terminal


Technical characteristics / specifications
  • Series outer diameter: 12 mm (φ12)
  • Typical lengths: 15.5 mm to 18.1 mm depending on submodel
  • Applied voltage: model-dependent (examples on page: 3.0 V, 4.5 V, 9.0 V, 12.0 V)
  • Terminal resistance: model-dependent (approx. from 2.4 Ω up to ~122.4 Ω)
  • No-load speed range: approx. 3600 to 23800 r/min (model-dependent)
  • No-load current range: approx. 4 to 45 mA
  • Startup current and torque: model-dependent (startup current examples range from ~75 mA to >1870 mA; startup torque examples up to ~4.02 mN·m)
  • Efficiency and output vary by model (examples up to ~74.5% efficiency and outputs up to ~2.03 W)
  • Available resources per submodel include full-size product images and demonstration videos; some models reference outline drawings and CAD data for download.
