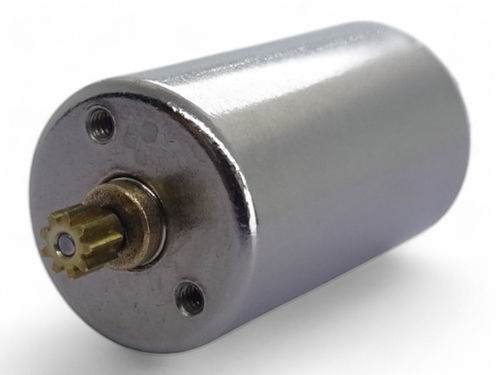

DC motor A12C-07

6 Vcorelessprecision

Overview
The A12C series of coreless motors (outer diameter φ12.4 mm) from C.I. TAKIRON provides a broad range of sub-models for precision electromechanical applications. Typical uses include dental treatment devices, SLR cameras, surveillance cameras and other compact equipment. Sub-models vary by length, applied voltage, terminal resistance and performance to match specific speed, torque and power requirements.

Product series — key specifications (examples)

• A12C-37 — φ12.4 mm × 21.5 mm, 9.2 V, R 3.05 Ω, no-load 21,500 r/min, max output 6.8 W
• A12C-33 — φ12.4 mm × 21.5 mm, 3.0 V, R 9.47 Ω, no-load 5,310 r/min, max output 0.23 W
• A12C-32 — φ12.4 mm × 21.5 mm, 9.2 V, R 2.67 Ω, no-load 24,800 r/min, max output 7.76 W
• A12C-30 — φ12.4 mm × 21.5 mm, 3.7 V, R 0.94 Ω, no-load 20,200 r/min, max output 3.57 W
• A12C-31 — φ12.4 mm × 24.8 mm, 11.1 V, R 2.40 Ω, no-load 24,800 r/min, max output 12.6 W
• A12C-38 — φ12.4 mm × 30.8 mm, 11.1 V, R 2.85 Ω, no-load 18,000 r/min, max output 10.7 W
• A12C-12 — φ12.4 mm × 30.8 mm, 9.0 V, R 1.65 Ω, no-load 20,500 r/min, max output 12.1 W
• A12C-07 — φ12.4 mm × 30.8 mm, 6.0 V, R 1.0 Ω, no-load 20,400 r/min, max output 8.81 W
• A12C-05 — φ12.4 mm × 30.8 mm, 6.0 V, R 1.5 Ω, no-load 15,000 r/min, max output 5.87 W
• A12C-40 — φ12.4 mm × 30.8 mm, 6.0 V, R 3.12 Ω, no-load 11,200 r/min, max output 2.81 W

Customizable items (typical)

• Gear head
• Lead pin
• Lead wire
• Grounding terminal

Characteristics / technical specifications

• Series name: A12C (C.I. TAKIRON)
• Outer diameter: 12.4 mm (φ12.4 mm)
• Available lengths: 21.5 mm, 24.8 mm, 30.8 mm
• Applied voltage: model-dependent (examples from ~3.0 V to 12.0 V)
• Terminal resistance range: approx. 0.82 Ω to 49.0 Ω depending on model
• No-load speed range: approx. 5,310 r/min to 24,800 r/min depending on model
• Max output range: approx. 0.23 W to 12.6 W depending on model
• Typical custom options: gear head, lead pin, lead wire, grounding terminal
