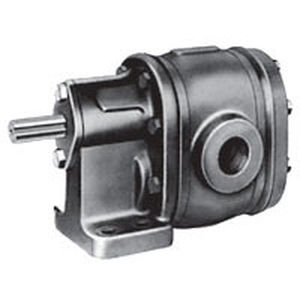

Gear pump 53/55 Seriesindustrialliftingmedium-pressure
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Domain
- industrial
- Applications
- lifting, medium-pressure
- Material
- cast iron
- Other characteristics
- with mechanical seals, flange, direct-drive, rotary
- Flow
51.4 us gal/min
(194.57017 l/min)- Pressure
200 bar
(2,900.755 psi)
Description
Series 53/55 pumps operate quietly at nominal motor speeds and discharge large volumes of liquid at medium pressures. Typical applications include hydraulic power for positioning devices, lifts, machine actuation, liquid pressurization for fuel burners and blenders as well as general transfer in all industries.
The pumps are available in cast iron (standard) and ductile iron. They are designed to operate at speeds to 1725 RPM, pressures to 200 PSI, and flow rates to 51.4 GPM. The standard seal is a mechanical self adjusting seal with Buna-N elastomer. Lubrication of the anti-friction bearings is accomplished by the circulation of the pumped liquid. All models are available with foot or flange mounting.
